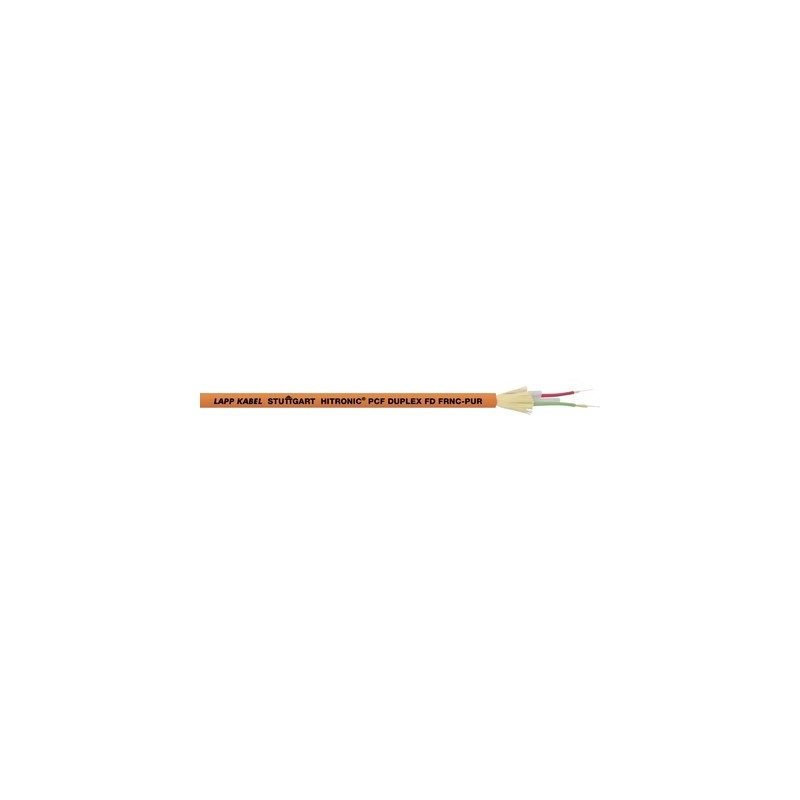

28320702 HITRONIC PCF DUPLEX FD FRNC-PUR LAPP HITRONIC PCF DUPLEX FD FRNC-PUR

Benefits

• Designed for use in power chains
• Transmission lengths up to 500 m
• Suitable for direct connector assembly
• Good resistance to oil, petrol, acids and alkalis
• EMC protection

Application range

• For highly flexible applications
• For data transmission in field bus systems, such as PROFIBUS, INTERBUS etc.
• As a link between moving parts
• Industrial environments

Product features

• Possible transmission wavelengths:
  650 nm and 850 nm
• Complies with requirements for all BUS systems
• Outer sheath flame-retardant and halogen-free

Product Make-up

• Colour-coded, tight-buffered PCF sub-cable with FRNC sheath
• Sub cable outer diameter: 2.2mm
• Aramid yarns as strain relief
• PUR outer sheath
• Colour: orange (RAL 2003)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000034
• ETIM 5.0 Class-Description: Fibre optic cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000034
• ETIM 6.0 Class-Description: Fibre optic cable

Dimensions

• Buffered fibre: 0.5mm
  Single cable: 2.2 mm
• Cable: 8.8mm

Core identification code

• red, green

Fibre type

• PCF - K200/230
• PCF - Polymer Cladded Fibre

Minimum bending radius

• Static: ≥ 15 x outer diameter
• Dynamic: ≥ 20 x outer diameter

Standard designation

• A/J-V(ZN)H11Y

Optical fibre type

• Core material: glass
• Cladding material: fluoropolymers

Permissible tensile force

• Fixed installation: 800 N
• Short-term: 2000 N

Temperature range

• Operation: -20 °C to +70 °C
• Installation: -10°C to +50°C
