28320001 HITRONIC POF SIMPLEX FD PE-PUR LAPP HITRONIC POF SIMPLEX FD PE-PUR
28320001
HITRONIC POF SIMPLEX FD PE-PUR
LAPP
100
HITRONIC POF SIMPLEX FD PE-PUR

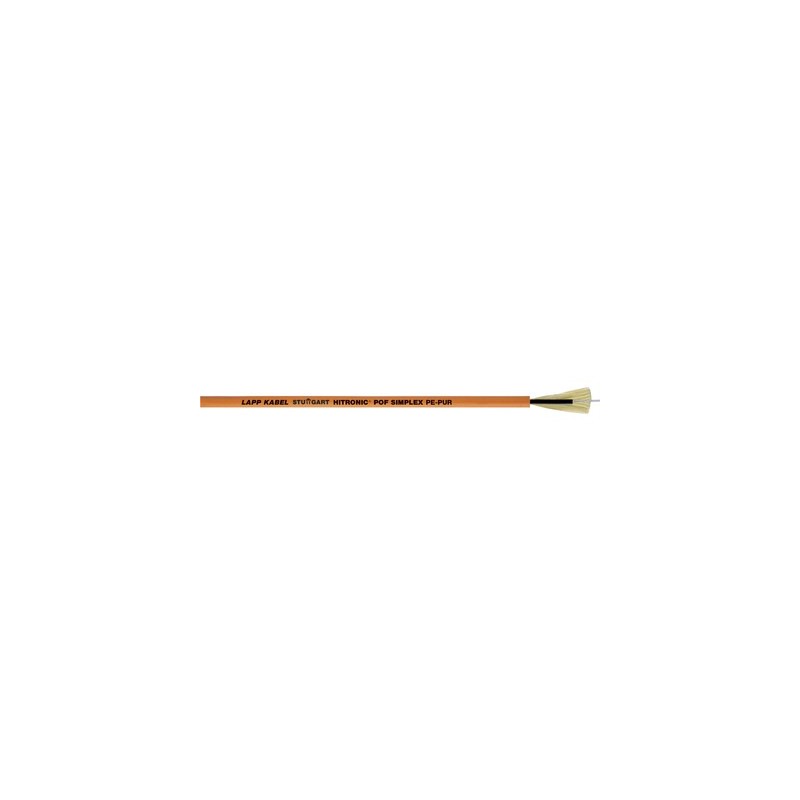

HITRONIC® POF SIMPLEX CABLE
Cables > Fibre optic cable
HITRONIC cabling
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲HITRONIC® POF Simplex PE cable version with PE buffer and PUR outer sheath, non-metallic strain relief; J-V2Y(ZN)11Y 1P980/1000
Suitable for direct connector assembly
Benefits
- Optical data transmisson up to 70m
- Easy to handle
- No intereference by external fields
- No grounding problems
- Suitable for direct connector assembly
Application range
- For optical signal transmission in industrial applications
- As a link between moving parts
- FD cable version:
for flexible applications (power chains)
Product features
- Resistant to abrasion, oil, microbes and hydrolysis
- Adhesion-free
- Outer sheath flame-retardant and halogen-free
- FD cable version:
5.000.000 bending cycles
Product Make-up
- Polymer Optical Fibre (POF)
- PE buffer tube
- Aramid yarns as strain relief
- PUR outer sheath
- Colour: orange (RAL 2003)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000034
- ETIM 5.0 Class-Description: Fibre optic cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000034
- ETIM 6.0 Class-Description: Fibre optic cable
Dimensions
- Buffered fibre: 2.2 mm
- Cable: see table
Fibre type
- POF - P980/1000
Standard designation
- J-V2Y(ZN)11Y
Optical fibre type
- Core material: PMMA
- Cladding material: fluoropolymers
Permissible bending radius
- ≥ 10 x outer diameter
Permissible tensile force
- Fixed installation: 100 N
- Short-term: 600 N
Temperature range
- Operation: -20 °C to +70 °C
- Installation: -10°C to +50°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 28320001 HITRONIC POF SIMPLEX FD PE-PUR 28320001 EN_28320001.pdf | 231 Kbytes |
|
