26610904 HITRONIC HDM600 4E 9/125 OS2 LAPP HITRONIC HDM600 4E 9/125 OS2

Benefits

• Suitable for field application
• Reelable for mobile use
• Very easy to install due to small dimensions, high flexibility, and small bending radius
• Zero electromagnetic interference as the cable contains no metal (totally dielectric)

Application range

• Light & sound technology
• For indoor and outdoor use
• Industrial environments
• TV broadcasts
  Camera technology
  Building monitoring
• Field application

Product features

• Based on military norm MIL-C-85045
• Highly flexible, reelable and tensile strength
• Colour-coded tight buffered fibres
  for easy channel identification
• Outer sheath halogen-free
• Mechanically robust

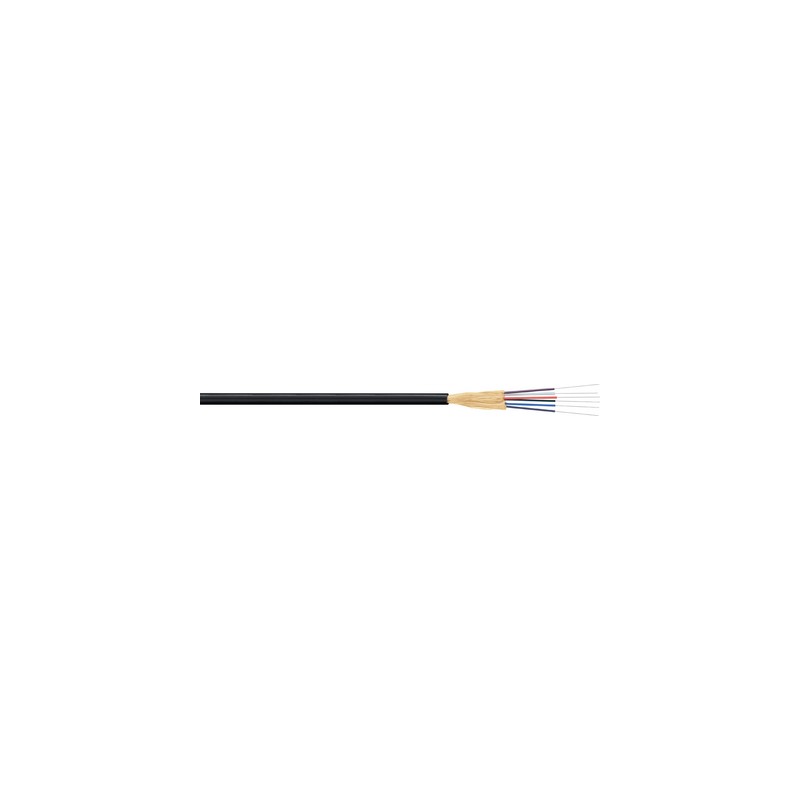

Product Make-up

• Up to 12 tight-buffered fibres (900µm)
• Colour-coded
• Aramid yarns as strain relief
• PUR outer sheath
• Colour: black (RAL 9005)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000034
• ETIM 5.0 Class-Description: Fibre optic cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000034
• ETIM 6.0 Class-Description: Fibre optic cable

Dimensions

• tight-buffer (secondary coated fibre): 900µm
• Cable: see table

Core identification code

• Buffered-fibre colour code see
  data sheet

Fibre type

• GOF - Glass Optical Fibre

Standard designation

• A/J-V(ZN)11Y

Optical values

• see data sheet

Optical fibre type

• Core material: glass
• Cladding material: glass

Permissible bending radius

• Static: ≥ 15 x outer diameter
• Dynamic: ≥ 20 x outer diameter

Temperature range

• Fixed installation: -40°C to +70°C
• Flexible use: -20°C to +60°C
