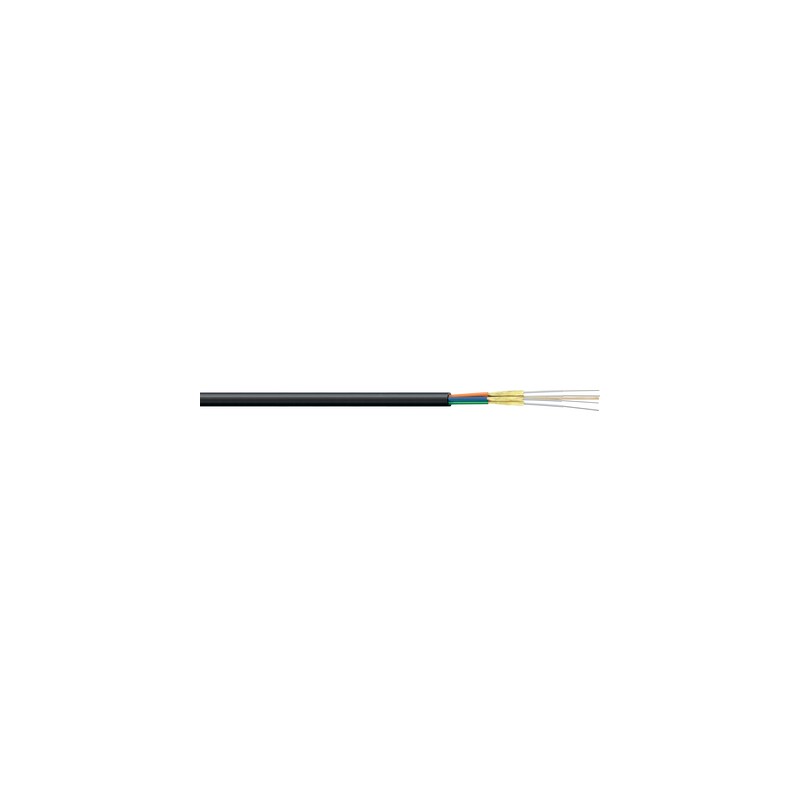

26310904 HITRONIC TORSION 4E 9/125 OS2 LAPP Breakout cable specially designed to withstand high torsional st..

Benefits

• Designed to withstand high torsion in the windmill drip loop
• Suitable for field assembly
• Easy to install due to the compact design, high flexibility, robust sheath and small bending radii
• Zero electromagnetic interference as the cable contains no metal (totally dielectric)

Application range

• For fixed and flexible installations, as well as for applications with torsional movements (e.g. machinery, wind turbines)
• Industrial environments
• In vertical installations
• As a link between moving parts
• For indoor and outdoor use

Product features

• Based on military norm MIL-C-85045
• Torsion-resistant and very flexible
• Outer sheath flame-retardant and halogen-free
• Mechanically robust

Product Make-up

• 2.5 mm tight-buffered sub-cable with
  LSZH sheath
• Aramid yarns as strain relief
• Central element
• PUR outer sheath
• Colour: black (RAL 9005)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000034
• ETIM 5.0 Class-Description: Fibre optic cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000034
• ETIM 6.0 Class-Description: Fibre optic cable

Dimensions

• sub-cable: 2.5mm
• Cable: see table

Core identification code

• Details see datasheet

Fibre type

• GOF - Glass Optical Fibre

Standard designation

• A/J-V(ZN)H11Y

Optical values

• see data sheet

Optical fibre type

• Core material: glass
• Cladding material: glass

Permissible bending radius

• Static: ≥ 15 x outer diameter
• Dynamic: ≥ 20 x outer diameter

Temperature range

• Fixed installation: -40°C to +70°C
• Occasional flexing: -30°C to +70°C
