26300904 HITRONIC HRM-FD1000 4E 9/125 OS2 LAPP HITRONIC HRM-FD1000 4E 9/125 OS2

Benefits

• Designed for use in power chains
• Suitable for field assembly
• Easy to install due to the compact design, high flexibility, robust sheath and small bending radii
• Zero electromagnetic interference as the cable contains no metal (totally dielectric)

Application range

• For highly flexible industrial
  applications
• As a link between moving parts
• In vertical installations
• Industrial environments
• For indoor and outdoor use

Product features

• Based on military norm MIL-C-85045
• For use in power chains and moving machinery parts in dry or damp rooms
• Outer sheath flame-retardant and halogen-free
• Mechanically robust

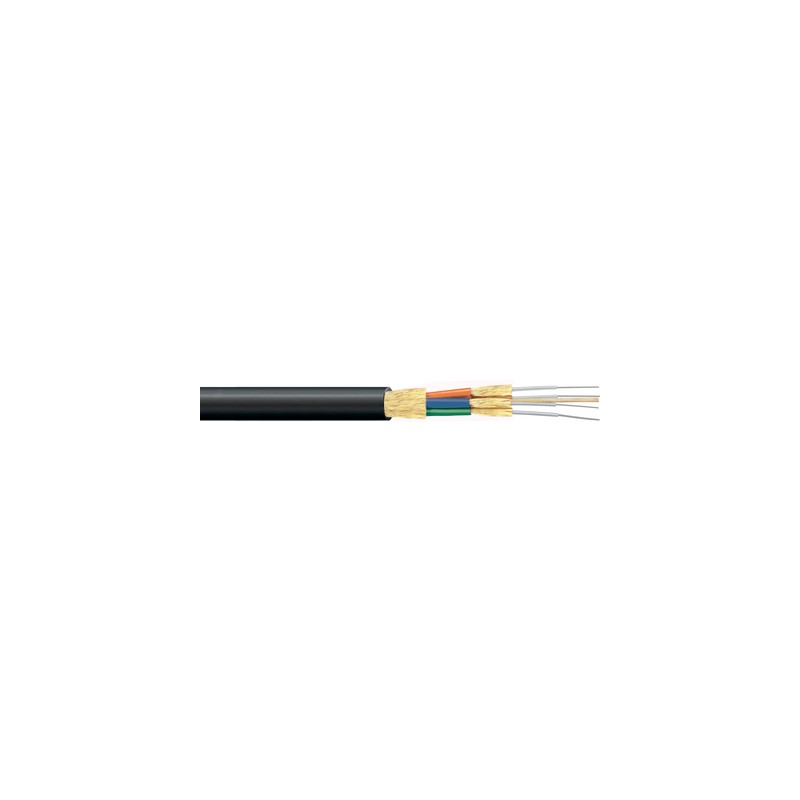

Product Make-up

• 2.0 mm tight-buffered sub-cable with
  LSZH sheath
• Aramid yarns as strain relief
• Central element
• PUR outer sheath
• Colour: black (RAL 9005)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000034
• ETIM 5.0 Class-Description: Fibre optic cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000034
• ETIM 6.0 Class-Description: Fibre optic cable

Dimensions

• sub-cable: 2.0mm
• Cable: see table

Core identification code

• Details see datasheet

Fibre type

• GOF - Glass Optical Fibre

Standard designation

• A/J-V(ZN)H(ZN)11Y

Optical values

• see data sheet

Optical fibre type

• Core material: glass
• Cladding material: glass

Permissible bending radius

• Static: ≥ 15 x outer diameter
• Dynamic: ≥ 20 x outer diameter

Temperature range

• Fixed installation: -40°C to +70°C
• Flexible use: -20°C to +60°C
