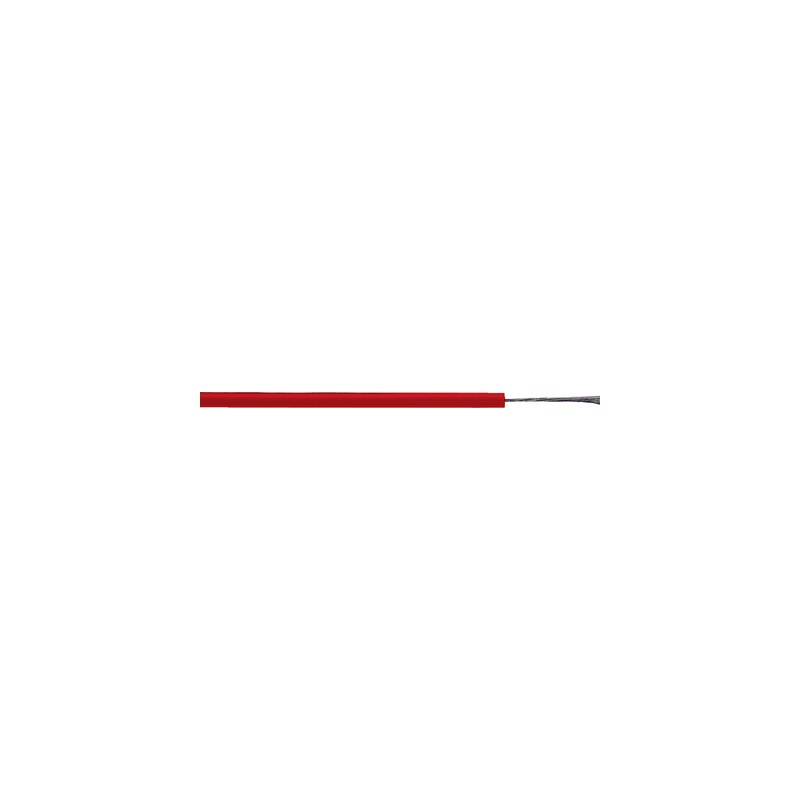

2510001 ÖLFLEX HEAT 180 FZLSi 1X1 LAPP Silicone cables with extended temperature range

Benefits

• Possesses insulating properties after combustion due to remaining SiO2 ash on the conductor

Application range

• Areas with high ambient temperatures where conventional core insulation materials will embrittle after a short while
• Typical fields of application
  - Control cabinet manufacturing
  - Appliances and apparatus engineering
  - Electric motor industry
  - Sauna/solarium construction
  - Thermal and heating elements
  - Lighting technology
  - Ventilator engineering
  - Air-conditioning technology
  - Furnace construction
  - Polymer processing
  - Generator and transformer manufacturing
• ÖLFLEX® HEAT 180 SiZ is suitable as electrical sensor cable in pipe systems for modern solar hot water systems

Product features

• Halogen-free according to IEC 60754-1
  (amount of halogen acid gas)
  Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity)
• Flame-retardant according IEC 60332-1-2
• Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances
• Adequate ventilation must be ensured, since the mechanical properties of silicone cables decrease from +100°C in the absence of air

Norm references / Approvals

• Increased voltage rating is not subject to theLow Voltage Directive 2014/35/EU

Product Make-up

• Fine-wire, tinned-copper conductor
• Silicone-based insulation
• Colour of core insulation: red

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000993
• ETIM 5.0 Class-Description: Single core cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000993
• ETIM 6.0 Class-Description: Single core cable

Conductor stranding

• Fine wire acc. to VDE 0295, class 5 / IEC 60228 class 5 from 0.5 mm²

Minimum bending radius

• Fixed installation: 6 x core diameter
  One bend at end of core:
  3 x cable diameter

Nominal voltage

• Version SiF/GL / SiZ:
  U0/U 300/500 V
  Version FZLSi:
  10 kV

Test voltage

• Version SiF/GL / SiZ:
  2000 V
  Version FZLSi:
  20 kV

Temperature range

• -50 °C to +180 °C
  (adequate ventilation required)
• Short-term: +200°C
