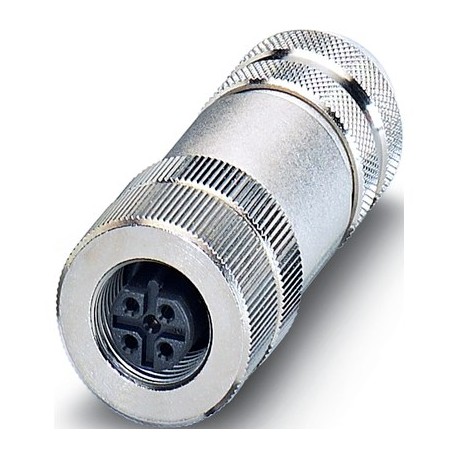

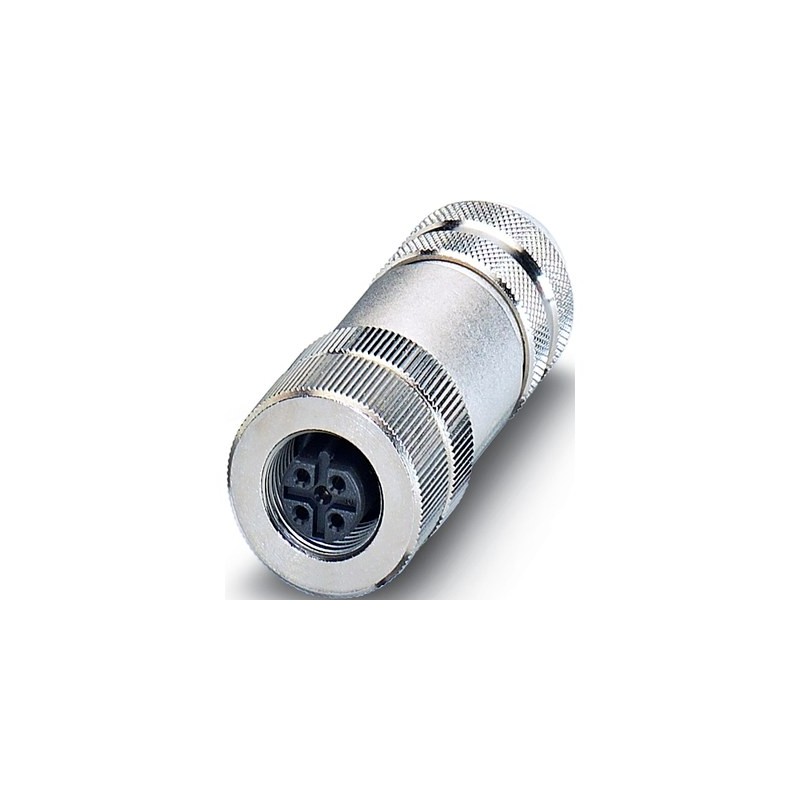

22262078 AB-C5-M12MSB-PG11-SH-AU LAPP AB-C5-M12MSB-PG11-SH-AU
22262078
AB-C5-M12MSB-PG11-SH-AU
LAPP
AB-C5-M12MSB-PG11-SH-AU
EPIC® DATA PB M12
Connectors > Circular connector for field assembly (industrial connector)
Fieldbus Modules passive
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲M12 field attachable fieldbus connector for PROFIBUS, b-coded, screened, high protection class (IP67)
Benefits
- Quick and easy on-site assembly
- For creating of individual cable lengths
- Cost efficient and rational wiring for BUS installations
- Space-saving due to compact dimensions
Product features
- Screened version
- Connector M12, B-coded
- PG9- / PG11-thread
- Screw connection
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002062
- ETIM 5.0 Class-Description: Sensor-actuator connector
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002062
- ETIM 6.0 Class-Description: Sensor-actuator connector
Material
- Contact: CuSn
Contact surface: Au
Contact carrier: PA66
Sealing: NBR
Knurl: Nickel-plated brass
Gripping body: Zinc die-cast, nickel-plated
Protection rating
- IP 67
Ambient temperature (operation)
- Plug/socket -40°C to +85°C
Coding
- B - inverse (PROFIBUS)
Rated current (A)
- 4 A
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 22262078 AB-C5-M12MSB-PG11-SH-AU 22262078 EN_22260889.pdf | 614 Kbytes |
|
