> LAPP>Fieldbus Modules passive>22260567 AB-C3-M12MS-0,6PUR-C-1L-S LAPP AB-C3-M12MS-0,6PUR-C-1L-S
Previous Product Next Product
22260567 AB-C3-M12MS-0,6PUR-C-1L-S LAPP AB-C3-M12MS-0,6PUR-C-1L-S View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

22260567 AB-C3-M12MS-0,6PUR-C-1L-S LAPP AB-C3-M12MS-0,6PUR-C-1L-S

22260567

AB-C3-M12MS-0,6PUR-C-1L-S

LAPP

AB-C3-M12MS-0,6PUR-C-1L-S

UNITRONIC® SENSOR Valve-M12

More details


Sensors > Sensor-actuator patch cord

Fieldbus Modules passive

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $18.73
Unit price: $18.73

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲

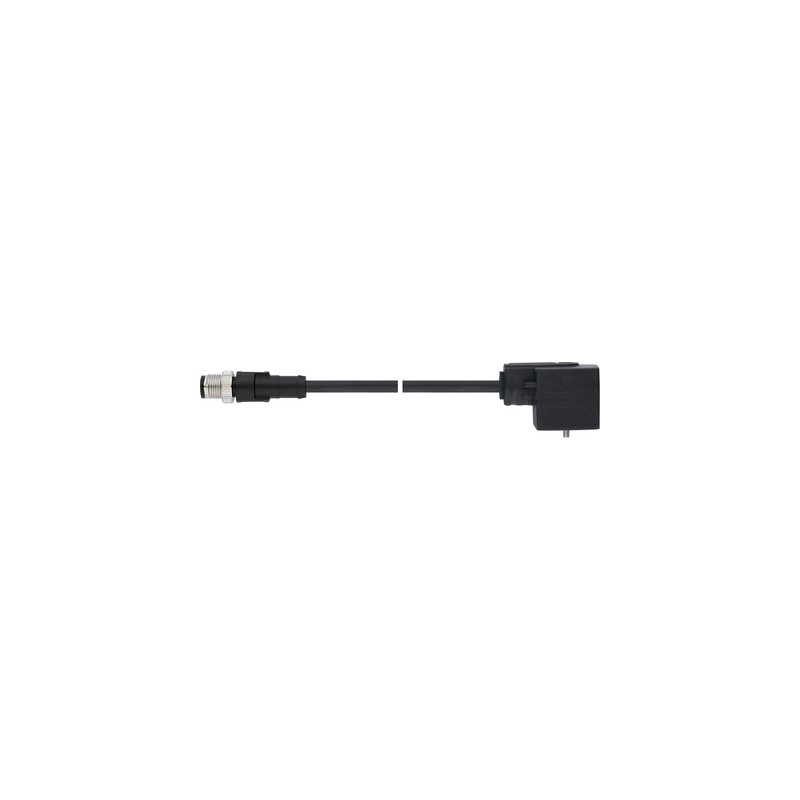

Sensor/actuator cordset, Valve connector on M12 plug, PUR halogenfree, 3-pin, with LED, Typ A, Typ B , Typ C, IP65/IP67

Benefits

  • Cost-saving due to quick and easy installation
  • Space-saving due to compact dimensions
  • Fast and easy error tracking

Product features

  • Suitable for drag chains
  • With protective circuit (Z diode), PE-bridged (except type AD)
  • With LED status indicator (yellow)
    With display switch state (2 LEDs, red/green)
  • Including tag carrier
  • PWIS-free

Product Make-up

  • 3 or 5 x 0.5 mm²
  • Core identification code:
    Black cores with white numbers +green/yellow
  • Outer sheath: PUR halogen-free, black
  • Outer diameter:
    4.5 mm (3 pins)
    5.3 mm (5 pins)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001855
  • ETIM 5.0 Class-Description: Sensor-actuator patch cord

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001855
  • ETIM 6.0 Class-Description: Sensor-actuator patch cord

Material

  • Contact: CuSn
    Contact surface: Ni/Au
    Knurl: Zinc die-cast, nickel-plated
    Gripping body: TPU, flame-retardant, self-extinguishing

Protection rating

  • IP65/IP67

Ambient temperature (operation)

  • Valve connector -20°C to +85°C
    Connector/socket -25°C to +90°C
  • Fixed installation -40°C to +80°C
    Flexing -20°C to +80°C

Coding

  • A-standard

Rated current (A)

  • 4 A

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE LAPP EN.pdf 58 Mbytes
22260567 AB-C3-M12MS-0,6PUR-C-1L-S 22260567 EN_22260551.pdf 186 Kbytes 22260567 AB-C3-M12MS-0,6PUR-C-1L-S 22260567 EN_22260551.pdf
