2171293 IE-PNB-5-M12DF-S-0,5-Y-2-22-7-RJ45 LAPP IE-PNB-5-M12DF-S-0,5-Y-2-22-7-RJ45
2171293
IE-PNB-5-M12DF-S-0,5-Y-2-22-7-RJ45
LAPP
IE-PNB-5-M12DF-S-0,5-Y-2-22-7-RJ45
ETHERLINE
Data and telecommunication > Patch cord copper (twisted pair) industry
ETHERLINE Patchcords
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info

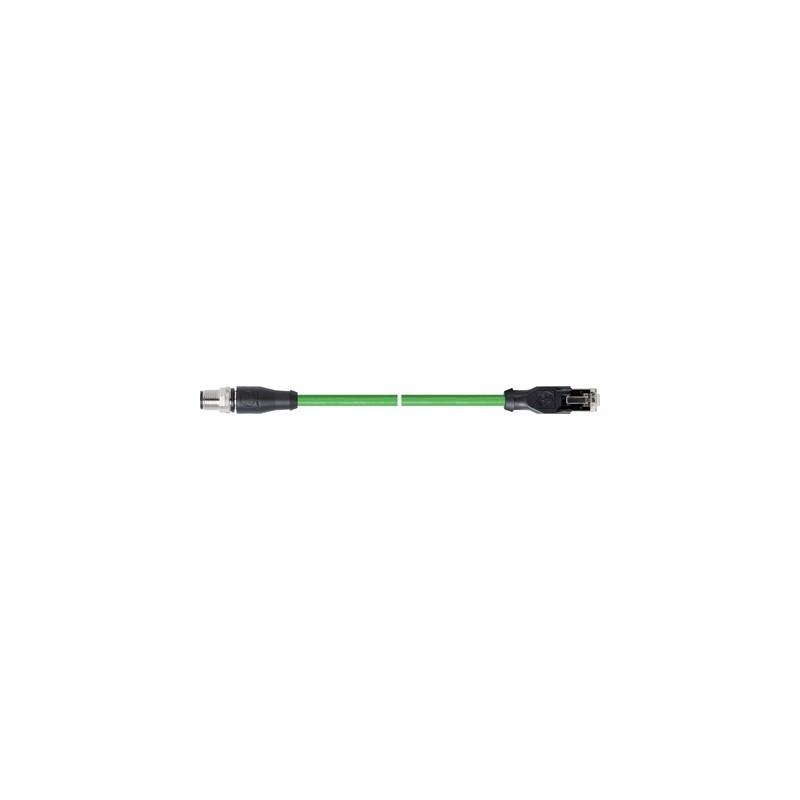

▲Industrial Ethernet Hose, Profinet Type B, Cat.5, Male M12 to Male RJ45, PVC, Flexible
- Based on 2170886
- More configurations in www.lappgroup.es/selectorsoluciones-automation.html or after consultation.
proceeds
- Detachable connection technology enables rapid replacement of components
- For direct connection between two electrical components
Scope of use
- Flexible use
- Valid for EtherCAT and EtherNet/IP applications
- Suitable for industrial applications
- For indoor use
Product features
- Meets the requirements according to Cat. 5e and class D
- 2 pairs: 10/100 Mbit/s for Industrial Ethernet
Reference Standards / Approvals
- The cable is UL/CSA (CMG) certified
Product composition
- Braided conductor, 2x2x AWG22/7
- Star quadrant
- Global copper braid and aluminium foil display
- PVC outer shell
- Color: green (similar to RAL 6018)
- Hoses with M12 D-coding connectors and RJ45 connectors
- 4-pole M12 connector with vibration protection
ETS Classification 5
- ETIM 5.0 Class-ID: EC002599
- ETIM Class 5.0 Description: Industrial Copper Hose (Twisted Pair)
ETTIM Rating 6
- ETIM 6.0 Class-ID: EC002599
- ETIM 6.0 Class-Description: Industrial Copper Connection Cable
Minimum radius of curvature
- Flexible use: 15 x outer diameter
- Fixed installation: 10 x outer diameter
Degree of protection:
- M12 - IP69
- RJ45 - IP20
Temperature range
- Flexible use: -20°C to +60°C
- Fixed installation: -30°C to +70°C
