> LAPP>ETHERLINE Patchcords>2171081 IE-5-M12D-S-3-H-2-26-7-OE LAPP IE-5-M12D-S-3-H-2-26-7-OE
Previous Product Next Product
2171081 IE-5-M12D-S-3-H-2-26-7-OE LAPP IE-5-M12D-S-3-H-2-26-7-OE View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

2171081 IE-5-M12D-S-3-H-2-26-7-OE LAPP IE-5-M12D-S-3-H-2-26-7-OE

2171081

IE-5-M12D-S-3-H-2-26-7-OE

LAPP

IE-5-M12D-S-3-H-2-26-7-OE

ETHERLINE

More details


Data and telecommunication > Patch cord copper (twisted pair) industry

ETHERLINE Patchcords

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $36.49
Unit price: $36.49

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲

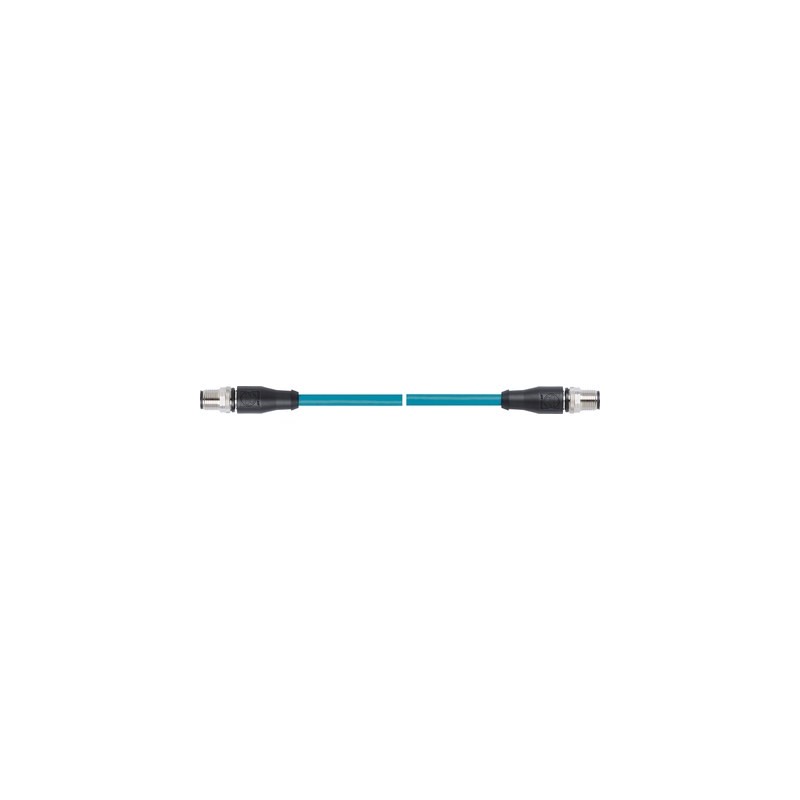

Industrial Ethernet Patchcord, Cat.5e, plug M12, D-coded, halogen-free, flexible

  • Halogen-free and flame-retardant
  • Additional variants are available at
    www.lappgroup.com/assemblyfinder
    or on request.
  • Based on 2170283

Benefits

  • Non-permanent connections allow for easy change of equipment
  • For directly connecting two electric components

Application range

  • suitable for EtherCAT and EtherNet/IP applications
  • Suitable for use in industrial applications
  • For indoor use
  • For flexible applications

Product features

  • Meets the requirements according to Cat. 5e and class D
  • 2pair: 10/100 Mbit/s for Industrial Ethernet

Product Make-up

  • Braided conductor, 2x2x AWG26/7
  • Twisted pair construction permits largely interference-free operation (decoupling).
  • Overall screening with copper braid and plastic-laminated aluminium foil
  • Outer sheath: halogen-free, flame-retardant compound
  • Colour: water blue (similar to RAL 5021)
  • Pre-assembled connection and patch cable with M12 D-coded connectors with vibration protection

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002599
  • ETIM 5.0 Class-Description: Patch cord copper (twisted pair) industry

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002599
  • ETIM 6.0 Class-Description: Patch cord copper (twisted pair) industry

Minimum bending radius

  • Flexing: 15 x outer diameter
  • Fixed installation: 6 x cable diameter

Protection rating

  • IP69

Temperature range

  • During installation: -5 °C to +60 °C
  • Fixed installation: -30°C to +80°C

Datasheet - PDF

▲
Title: Size: Type:
2171081 IE-5-M12D-S-3-H-2-26-7-OE 2171081 EN_2171075.pdf 264 Kbytes 2171081 IE-5-M12D-S-3-H-2-26-7-OE 2171081 EN_2171075.pdf
