2170931 ETHERLINE PN Cat.6A FRNC FLEX 4x2x23/7 LAPP ETHERLINE PN Cat.6A FRNC FLEX 4x2x23/7

Benefits

• Can be used in dry or damp rooms
• Screened against interference
• Can be used for Industrial Ethernet in harsh industrial environments
• 4pair: 100Mbit/s up to 10 Gbit/s for Industrial Ethernet

Application range

• for industrial secondary and tertiary cabling according to EN 50173-3
  ISO/IEC 24702
• Wiring of machines, tools, devices, appliances and control cabinets
• suitable for EtherCAT and EtherNet/IP applications
• For flexible applications
  (7-wire stranded conductor)

Product features

• CAT.6A for flexible application, qualified for 10Gbit/s
• Meets the requirements according to CAT.6A, ISO/IEC 11801 and EN 50173
• High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference
• The oil-resistant PVC sheath enables usage in industrial environments

Norm references / Approvals

• UL approvals see data sheet
• ETHERLINE® PN Cat.6A Y FLEX: ECOLAB®
  Industry standard for innovation and efficiency in the field of professionllen cleaning and disinfection

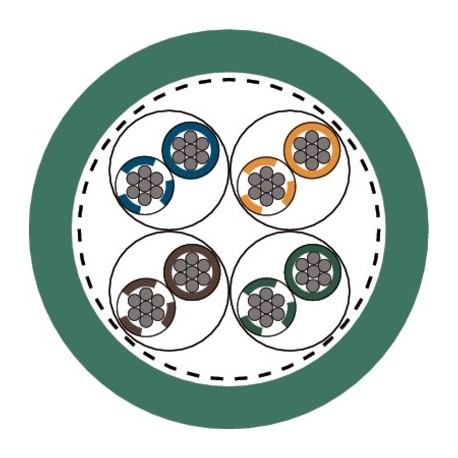

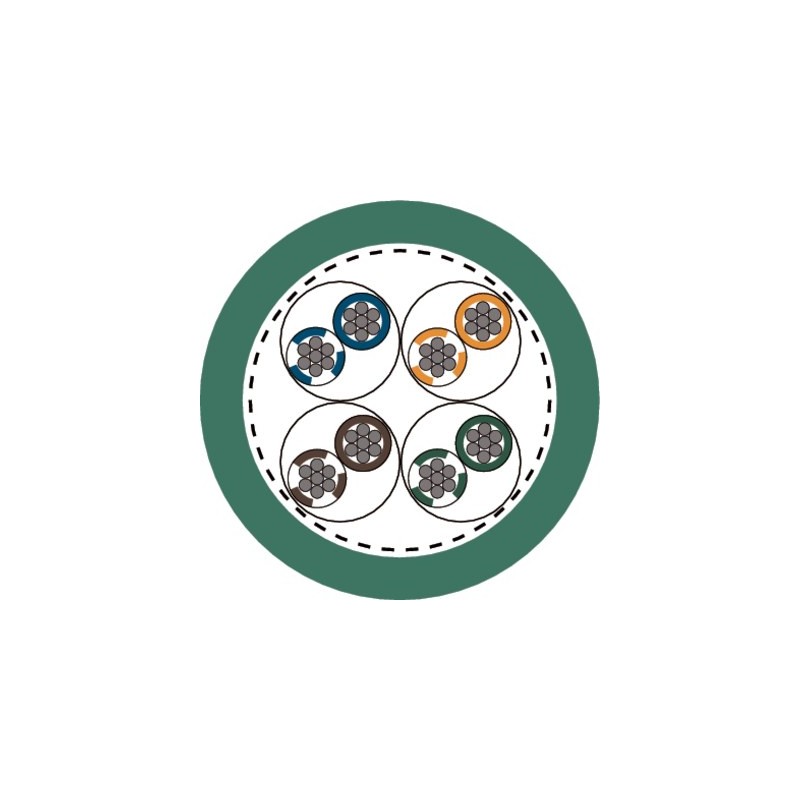

Product Make-up

• 7-wire tinned stranded copper conductor
• Core insulation: PE
• S/FTP: copper braid as overall screening and pair screening with aluminium compound foil
• PVC or FRNC jacket material
• Colour: green (based on RAL 6018)

Classification ETIM 5

• ETIM 5.0/6.0 Class-ID: EC000830
• ETIM 5.0/6.0 Class-Description: Data cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000830
• ETIM 6.0 Class-Description: Data cable

Peak operating voltage

• (not for power applications) 125 V

Minimum bending radius

• Flexing: 15 x outer diameter
• Fixed installation: 8 x outer diameter

Characteristic impedance

• nom. 100 Ω acc. to IEC 61156-5

Temperature range

• cable halogenfree compound
  Fixed installation: -25°C to +80°C
  Occasional flexing: -10°C to +80°C
  cable with PVC jacket
  Fixed installation: -40°C to +80°C
  Occasional flexing: -10°Cto +70°C
