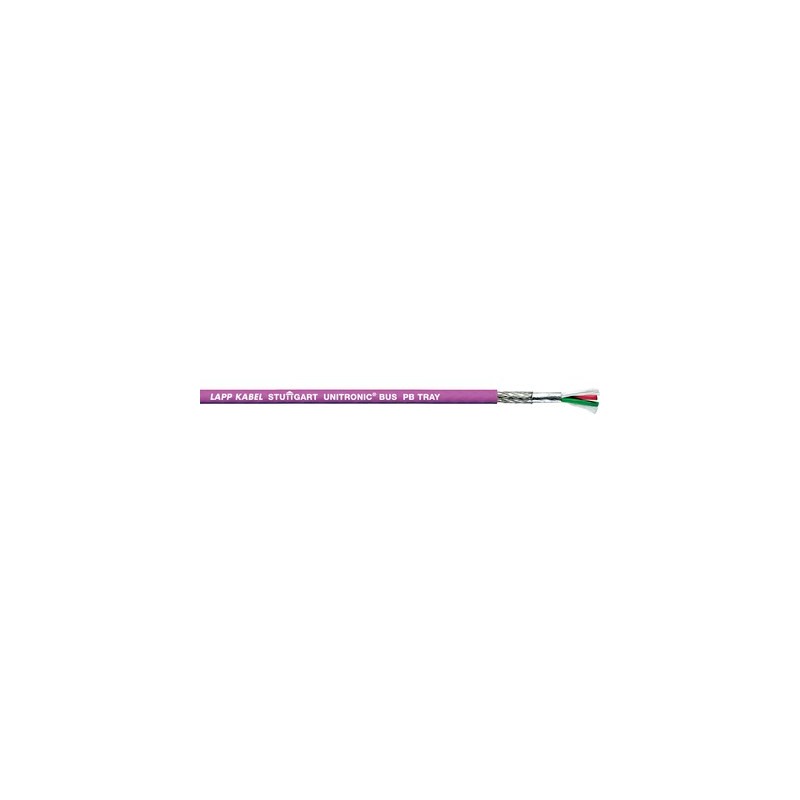

2170856 UNITRONIC BUS PB TRAY 1x2x0,64 LAPP UNITRONIC BUS PB TRAY 1x2x0,64

Benefits

• Cables can be used for PROFIBUS-DP as well as PROFIBUS-FMS and FIP
• PLTC-ER approval for open wiring between cable tray and industrial machines/plants acc. to NEC 725.154 (D)
• No additional protection of the cable needed

Application range

• For fixed installation or applications with occasional movements
• PROFIBUS DP (in accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC® NET, also suitable for FIP - Factory Instrumentation Protocol).

Product features

• Based on the bit rates listed, in accordance with PNO specifications the following maximum cable lengths for a bus segment apply
  (cable type A, PROFIBUS-DP):
  93.75 kbit/s = 1200 m
  187.5 kbit/s = 1000 m
  500 kbit/s = 400 m
  1.5 Mbit/s = 200 m
  12.0 Mbit/s = 100 m
• UV-resistant UL SUN RES
• Flame retardant acc. UL 1685 - FT4 (vertical tray)

Norm references / Approvals

• c(UL)us Typ CMG (75°C) acc.to UL 444 / CSA 22.2
• UL Type PLTC-ER acc. to UL 13

Product Make-up

• Bare copper wire, 0,64 mm diameter
• Core colours: red, green
• Overall screening with copper braid and plastic-laminated aluminium foil
• PVC inner sheath and outer sheath
• Colour: violet (RAL 4001)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000830
• ETIM 5.0 Class-Description: Data cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000830
• ETIM 6.0 Class-Description: Data cable

Mutual capacitance

• (1 kHz): max. 30 nF/km

Peak operating voltage

• (not for power applications) 250 V

Impedance

• 150 +/- 15 Ohm

Conductor resistance

• (loop): max. 110 ohm/km

Minimum bending radius

• Fixed installation: 8 x outer diameter

Test voltage

• Core/core: 2000 V

Characteristic impedance

• 150 ± 15 Ohm

Temperature range

• Flexing: -10°C to +70°C
• Fixed installation: -40°C to +80°C
