2170630 UNITRONIC BUS PB 105 1X2X0,64 LAPP UNITRONIC BUS PB 105 1X2X0,64
2170630
UNITRONIC BUS PB 105 1X2X0,64
LAPP
1 m.
UNITRONIC BUS PB 105 1X2X0,64

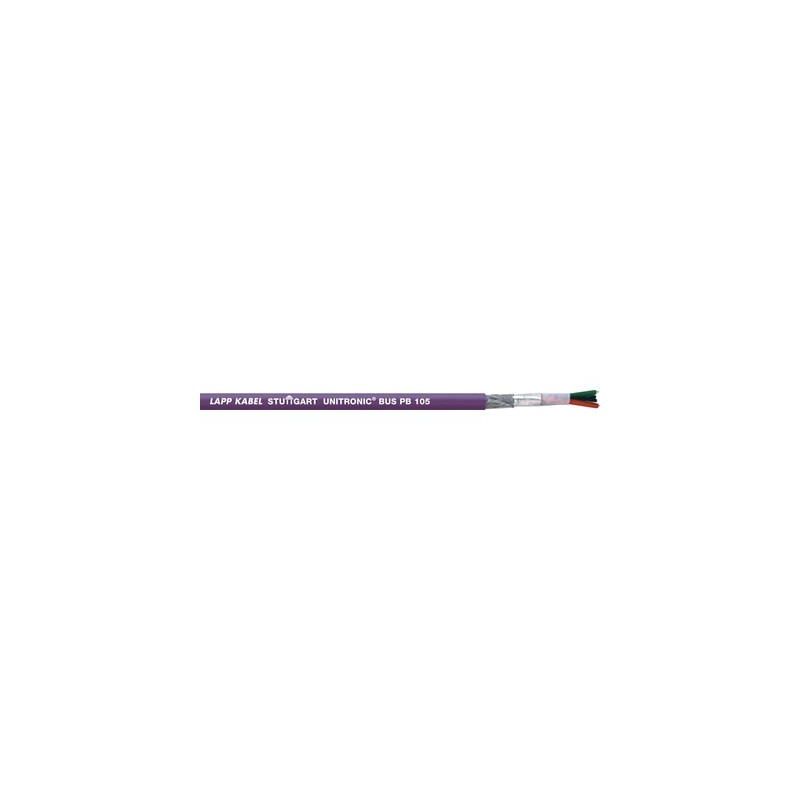

UNITRONIC® BUS PB 105
Cables > Data and communication cable
UNITRONIC BUS cabling
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲Bus cable for PROFIBUS-DP, -FMS and FIP. No additional cable protection against high temp. Flame retardant and oil resistant. Temp. range -30°C bis +105°C
Application range
- Cable has been designed for use in factory halls where temperatures up to max. 105°C may occur.
Product features
- High temperature resistance
- Flame-retardant according IEC 60332-1-2
- Oil-resistant
Product Make-up
- Stranded conductor, 7-wire, bare
- Conductor diameter: 0,64 mm (AWG24)
- Core insulation: PP
- Overall screening with copper braid and plastic-laminated aluminium foil
- Outer sheath: PVC, violet (RAL 4001)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000830
- ETIM 6.0 Class-Description: Data cable
Mutual capacitance
- Approx. 28.5 nF/km
Peak operating voltage
- max. 100 V (not for power applications)
Minimum bending radius
- Fixed installation: 45 mm once
- Flexing: 65 mm
Test voltage
- Core/core: 1500 V rms
- Core/screen: 1500 V
Characteristic impedance
- (3 - 20 MHz): 150 ± 15 Ohm
Temperature range
- -30°C to +105°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 2170630 UNITRONIC BUS PB 105 1X2X0,64 2170630 EN_2170630.pdf | 179 Kbytes |
|
