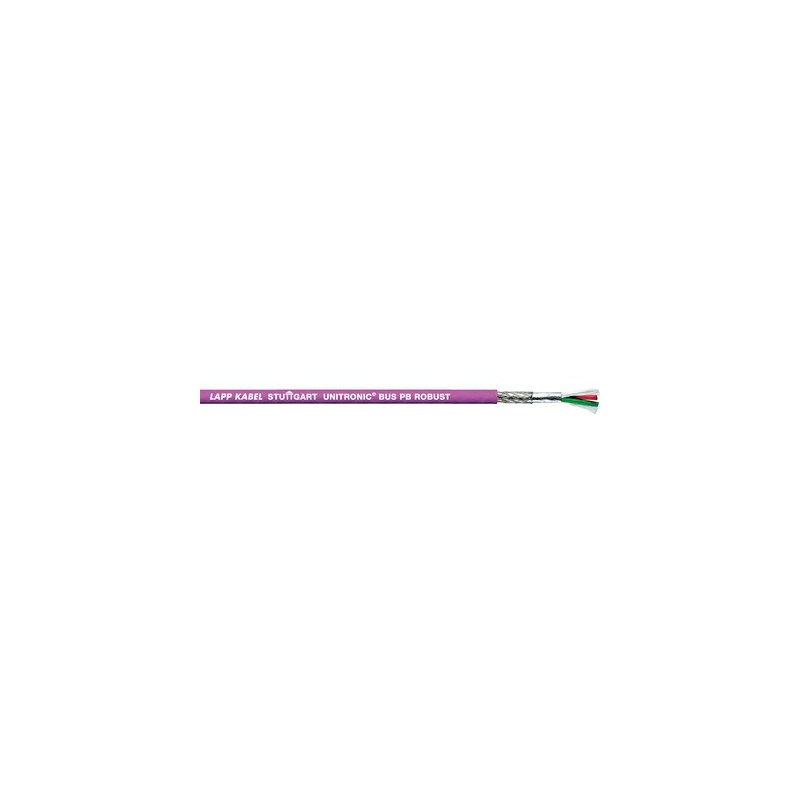

2170620 UNITRONIC BUS PB ROBUST 1X2X0,64 LAPP UNITRONIC BUS PB ROBUST 1X2X0,64
2170620
UNITRONIC BUS PB ROBUST 1X2X0,64
LAPP
1 m.
UNITRONIC BUS PB ROBUST 1X2X0,64
UNITRONIC® BUS PB ROBUST
Cables > Data and communication cable
UNITRONIC BUS cabling
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Often bought together
▲Best sellers
▲More info
▲Bus cable for PROFIBUS-DP, -FMS and FIP. Resistance against water, chemicals, tensides, soaps..., UV-resistant, flame retardant. Temp. range -40°C bis +80°C
- Excellent weather resistance
- Good chemical resistance please see Appendix T1
Benefits
- Robust PROFIBUS cable for use under harsh environmental conditions
Application range
- For use for PROFIBUS-DP or FIP in harsh industrial environments
- Fixed Installation
Product features
- Significantly extended use and application areas, water and chemical resistance for use in industrial conditions.
- High resistance to tensides, soaps etc.
- UV-resistant
- Flame-retardant according IEC 60332-1-2
- Based on the bit rates listed, in accordance with PNO specifications the following maximum cable lengths for a bus segment apply
(cable type A, PROFIBUS-DP):
93.75 kbit/s = 1200 m
187.5 kbit/s = 1000 m
500 kbit/s = 400 m
1.5 Mbit/s = 200 m
12.0 Mbit/s = 100 m
Product Make-up
- Solid and bare copper conductor
- Core insulation: cellular PE, O2Y(S)
- Overall screening with copper braid and plastic-laminated aluminium foil
- Outer sheath: Specially formulated TPE,
violet (RAL 4001) - With conventional cable design
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000830
- ETIM 6.0 Class-Description: Data cable
Mutual capacitance
- (1 kHz): approx. 28.5 nF/km
Peak operating voltage
- (not for power applications) 250 V
Minimum bending radius
- Fixed installation: 75 mm
Test voltage
- Core/core: 1500 V rms
- Core/screen: 1500 V
Characteristic impedance
- (3 - 20 MHz): 150 ± 15 Ohm
Temperature range
- -40°C to +80°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 2170620 UNITRONIC BUS PB ROBUST 1X2X0,64 2170620 EN_2170620.pdf | 319 Kbytes |
|
