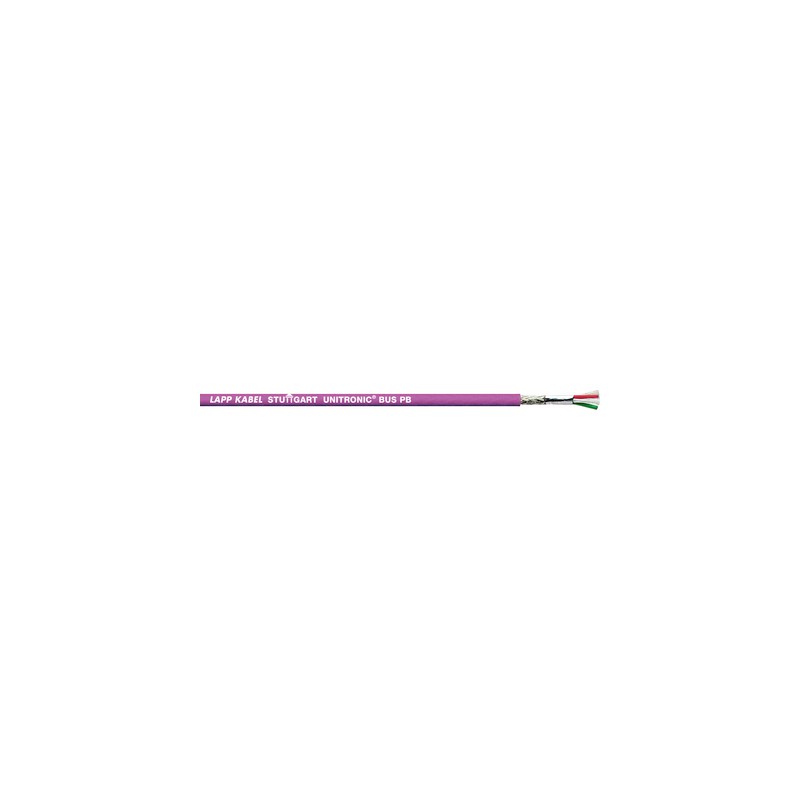

2170330 UNITRONIC BUS PB P FC 1X2X0,64 LAPP UNITRONIC BUS PB P FC 1X2X0,64

Application range

• For fixed installation
  Maximum electromagnetic screening
• Dry or damp rooms
• Item nos. 2170233, 2170333, 2170820, 2170824, 2170826 are all UV-resistant

Product features

• These bus cables can be used for PROFIBUS-DP as well as for PROFIBUS-FMS and FIP
• Based on the bit rates listed, in accordance with PNO specifications the following maximum cable lengths for a bus segment apply
  (cable type A, PROFIBUS-DP):
  93.75 kbit/s = 1200 m
  187.5 kbit/s = 1000 m
  500 kbit/s = 400 m
  1.5 Mbit/s = 200 m
  12.0 Mbit/s = 100 m

Norm references / Approvals

• In accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC NET, also suitable for FIP (Factory Instrumentation Protocol)
• See below for UL certification type

Product Make-up

• FC: Fast Connect cable design
• P: Polyurethane
  H: Halogen-free
• PE: polyethylene outer sheath, black
• 7-W: 7-wire, e.g. for applications where vibrations occur
• COMBI: Data transmission and
  power supply in one cable

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000830
• ETIM 5.0 Class-Description: Data cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000830
• ETIM 6.0 Class-Description: Data cable

Mutual capacitance

• (800 Hz): max. 30 nF/km

Peak operating voltage

• (not for power applications) 250 V

Conductor resistance

• (loop): max. 186 Ohm/km.
  see also datasheet

Minimum bending radius

• Fixed installation: see data sheet

Test voltage

• Core/core: 1500 V rms

Characteristic impedance

• 150 ± 15 Ohm
