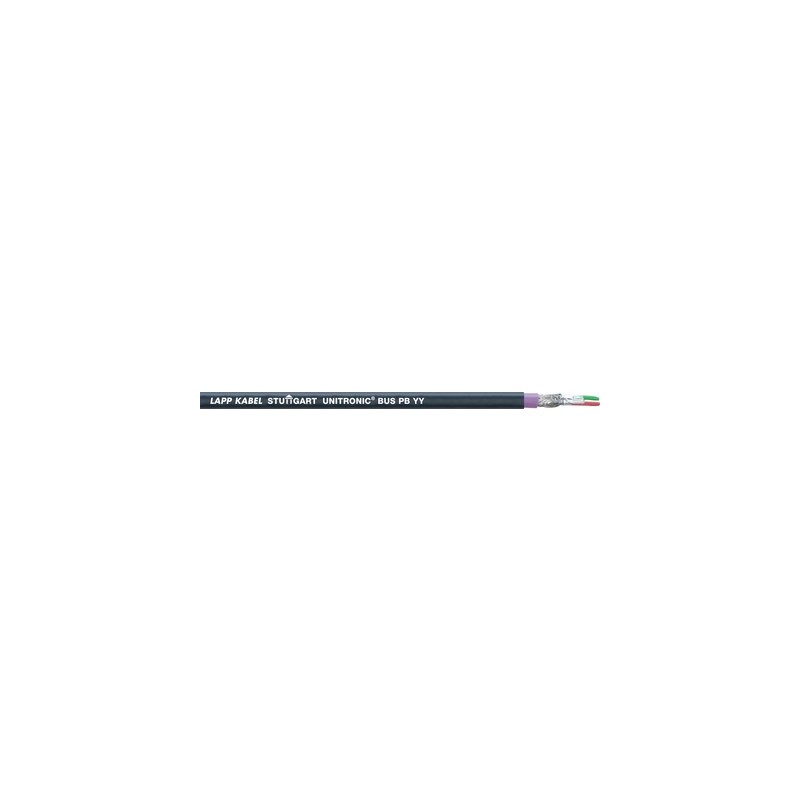

2170236 UNITRONIC BUS PB YY 1X2X0,64 LAPP UNITRONIC BUS PB YY 1X2X0,64
2170236
UNITRONIC BUS PB YY 1X2X0,64
LAPP
1 m.
UNITRONIC BUS PB YY 1X2X0,64
UNITRONIC® BUS PB YY
Cables > Data and communication cable
UNITRONIC BUS cabling
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲Bus cable for PROFIBUS-DP, -FMS and FIP. Rugged, UV- and weather-resistant. Dual PVC outer sheath. Temperature range from -40°C bis +80°C
Benefits
- Rugged, UV-resistant and weatherproof
- Cables can be used for PROFIBUS-DP as well as PROFIBUS-FMS and FIP
Application range
- PROFIBUS DP (in accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC® NET, also suitable for FIP - Factory Instrumentation Protocol).
Product features
- Double PVC outer sheath
Product Make-up
- Solid and bare copper conductor
- Core insulation: PE
- Overall screening with copper braid and plastic-laminated aluminium foil
- Inner sheath: PVC, violet RAL (4001),
outer diameter: 7.4 mm - Outer sheath, PVC, black RAL (9005),
outer diameter: 9.5 mm
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000830
- ETIM 6.0 Class-Description: Data cable
Mutual capacitance
- (800 Hz): max. 30 nF/km
Peak operating voltage
- (not for power applications) 250 V
Minimum bending radius
- Fixed installation: 75 mm once
- Fixed installation: 10 x outer diameter
Test voltage
- Core/core: 1500 V rms
- Core/screen: 1500 V
Characteristic impedance
- 150 ± 15 Ohm
Temperature range
- Flexing: -5°C to +50°C
- Fixed installation: -40°C to +80°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 2170236 UNITRONIC BUS PB YY 1X2X0,64 2170236 2170236_EN_LAPP_PRO159070ENGB.pdf | 180 Kbytes |
|
