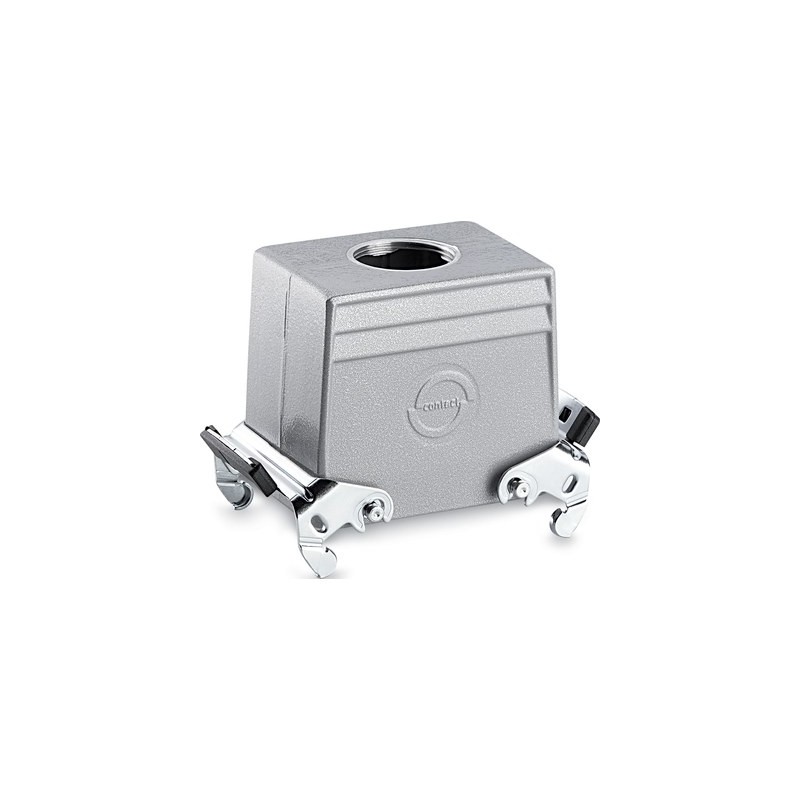

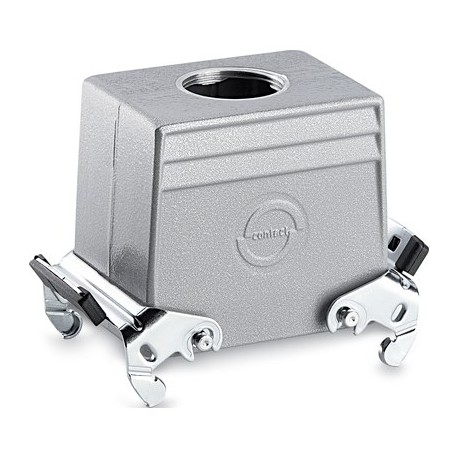

19585000 H-A 32 TGB M32 N.GEW. HOOD LAPP H-A 32 TGB M32 N.GEW. HOOD
19585000
H-A 32 TGB M32 N.GEW. HOOD
LAPP
5
H-A 32 TGB M32 N.GEW. HOOD
EPIC® H-A 32 TGB
EPIC rectangular
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲The robust housing for 2 inserts of the H-A, H-D or STA series is ideal for space-saving installations. It has 2 double levers and a direct cable entry.
Compact, robust metal housings for double size H-A 32
Benefits
- For two inserts of the small H-A, H-D and STA series. Space-saving
- M40 housing extension on M50 with SKINTOP 53112083 possible (clamping range 27 - 35 mm)
Application range
- Machine and equipment manufacturing
- Control engineering
Product features
- Hood
- Dual levers
- Straight cable entry
- Versions with / without neck
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
Temperature range
- -40°C to +100°C, short-term up to +125°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 19585000 H-A 32 TGB M32 N.GEW. HOOD 19585000 EN_79525800.pdf | 459 Kbytes |
|
