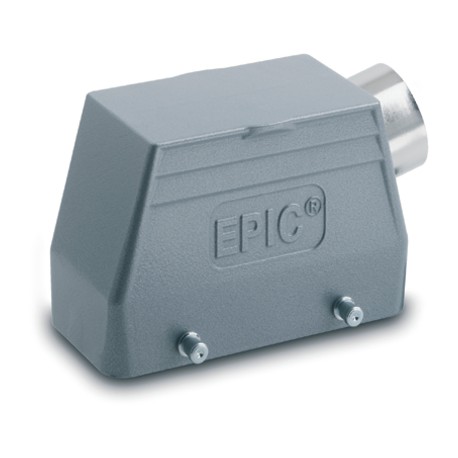

19042000 EPIC H-B 10 TS M20 ZW LAPP EPIC H-B 10 TS M20 ZW
19042000
EPIC H-B 10 TS M20 ZW
LAPP
10
EPIC H-B 10 TS M20 ZW
EPIC® H-B 10 TS
Connectors > Housing for rectangular connectors
EPIC rectangular
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info

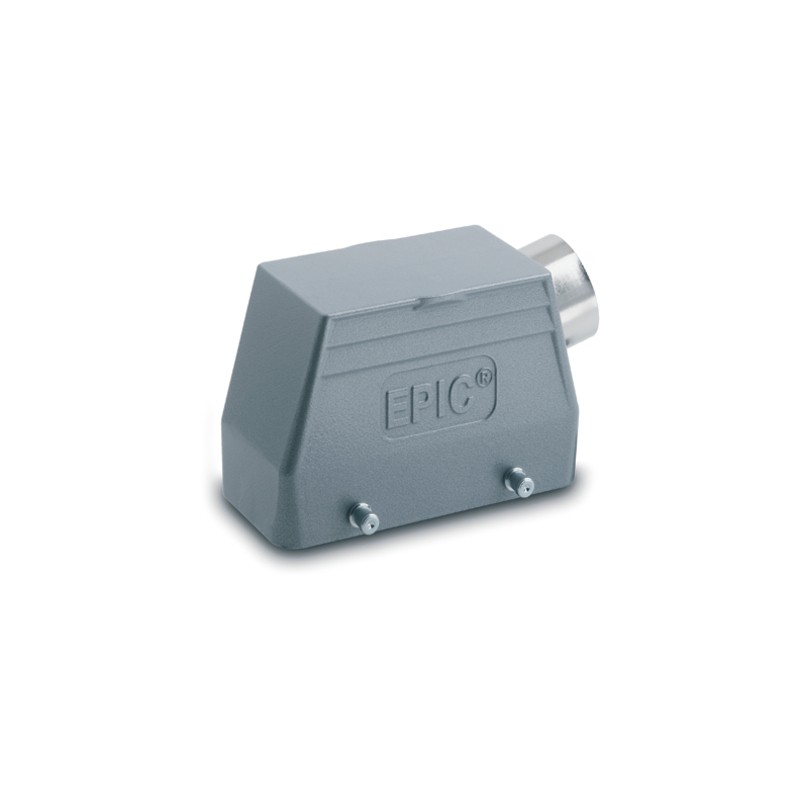

▲The robust low metal housing has a side cable entry, pivots for a double lever and is supplied with a neck.
- Non-slip ridges for comfortable disconnecting
- Protection rating UL50E tested
Benefits
- The smallest housing with single and double lever. The right housing is available for every application
Application range
- Plant engineering
- Light & sound technology
- Plastics industry
Product features
- Hood, low version
- Bolts for double lever
- Side cable entry
- Versions with neck
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 19042000 EPIC H-B 10 TS M20 ZW 19042000 EN_19042000.pdf | 304 Kbytes |
|
