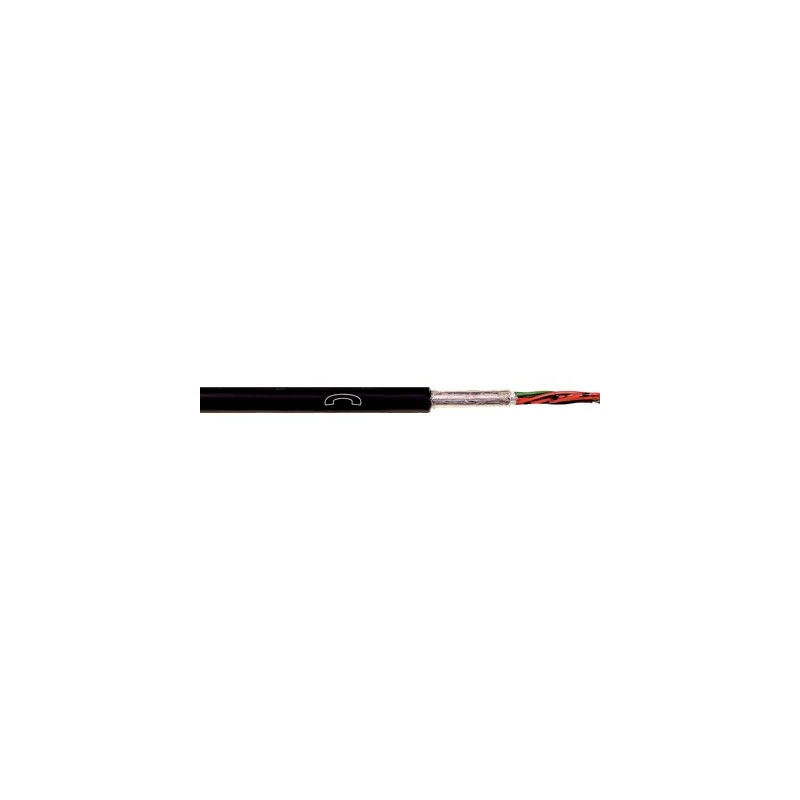

1591050 A-2Y(L)2Y...ST III BD 2x2x0,6 LAPP A-2Y(L)2Y...ST III BD 2x2x0,6

Application range

• External cables for telecommunication and data processing systems
• Do not install cables that are meant to be placed in ducts or for direct burial in areas exposed to fire hazards

Product features

• Outer sheath colour: black (RAL 9005)
• UV-resistant and laterally watertight
• Filled version (A-2YF(L)2Y...ST III BD) is addionally longitudinal watertight

Norm references / Approvals

• In accordance with DIN VDE 0816

Product Make-up

• Solid bare copper conductor
• Core insulation made of polyethylene (PE)
• 5 star-quads are twisted into each basic unit, which is then twisted together with the main unit to form the cable core
• Paper tape wrapping
• Laminated sheath with aluminium-coated plastic tape, PE outer sheath

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000829
• ETIM 5.0 Class-Description: Signal-/telecommunications cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000829
• ETIM 6.0 Class-Description: Signal-/telecommunications cable

Core identification code

• According to VDE 0816,
  refer to Appendix T10

Mutual capacitance

• At 800 Hz: max. 52 nF/km

Coupling

• K1: 98 % <400 pF/300 m
• K9-12: 98 % < 100 pF/300 m

Conductor cross-section in

• 0.6 mm: 0.28 mm²
• 0.8 mm: 0.50 mm²

Cable attenuation/attenuation

• At 800 Hz 0.6 mm: approx. 1.04 dB/km
• At 800 Hz 0.8 mm: approx. 0.78 dB/km

Minimum bending radius

• 10 x outer diameter

Test voltage

• Core/core: 500 V
• Core/screen: 2000 V

Loop resistance

• 0.6 mm: 130 ohm/km
• 0.8 mm: 73.2 ohm/km

Temperature range

• During installation: -20 °C to +50 °C
  After installation: ≤ +70 °C
