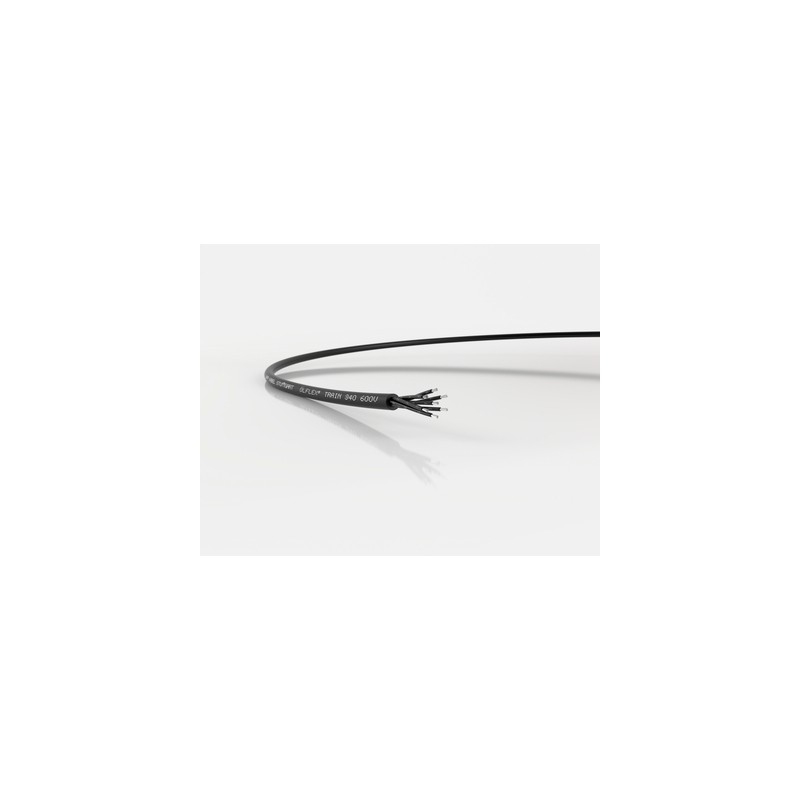

15340002 ÖLFLEX TRAIN 340 600V 4X1,5 LAPP Multi-core cable according to EN 50264-3-2 type MM for railway app..

Benefits

• Good chemical resistance please see Appendix T1
• Resistant to mechanical influences in harsh environmental conditions
• Extended temperature range
• Reduced flame spreading increases the protection against damage to persons and property in the event of a fire

Application range

• For use in railway vehicles, for fixed installations and applications where limited movement may occur
• Suitable for connecting lamps, heating equipment, switchgear, terminal boxes and power supply
• Also applicable within oily environments and areas with increased ambient temperature

Product features

• Fire behaviour according to EN/IEC:
  - Halogen-free acc. to EN 60754-1
  - No corrosive gases acc. to EN 60754-2
  - No fluorine acc. to EN 60684-2
  - No toxic gases acc. to EN 50305
  - Low smoke density acc. to EN 61034-2
  - Flame-retardant acc. to EN 60332-1-2
  - No flame propagation acc. to
  EN 60332-3-24 / EN 60332-3-25 /
  EN 50305
• Fire behaviour according to NF:
  - Toxicity of gases acc. to NF X 70-100
  - Low smoke density acc. to NF X 10-702
  - No flame propagation acc. to NF C 32-070,
  Cat. C1 and C2
• Chemical properties:
  - Oil resistant acc. to EN 50264-3-2
  - Fuel resistant acc. to EN 50264-3-2
  - Acid resistant acc. to EN 50264-3-2
  - Alkali resistant acc. to EN 50264-3-2
  - Ozone resistant acc. to EN 50264-3-2/
  EN 50305)
• Current rating according to EN 50355, appendix A

Norm references / Approvals

• EN 50264-3-2 type MM
• EN 45545-2 HL1, HL2, HL3
• NF F 16-101 - Classification: C / F0
  (flame propagation / smoke)

Product Make-up

• Tinned-copper strand, fine-wire
• Insulation: Electron beam cross-linked Polymer compound EI 109
• Colour of insulation: Black with white numbers
• Outer sheath: electron beam cross-linked polymer-compound EM 104
• Outer sheath colour: Black

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• Black with white numbers

Conductor stranding

• Fine-wired/ Finely stranded according to IEC 60228, conductor class 5

Minimum bending radius

• Fixed installation:
  ≤ 12 mm: 3 x OD
  > 12 mm: 4 x OD
• Occasional flexing:
  ≤ 12 mm: 4 x OD
  > 12 mm ≤ 20 mm: 5 x OD
  > 20 mm: 6 x OD
  (OD = outer diameter)

Nominal voltage

• U0/U AC 0.6/1 kV
• U_mAC 1.2 kV
  V₀DC 0.9 kV

Test voltage

• 3,5 kV AC; 8,4 kV DC

Protective conductor

• G = with GN-YE protective conductor
  X = without protective conductor

Temperature range

• Fixed installation:
  -45°C to +120°C (20.000 h)
  -50°C acc. to GOST 20.57.406-81
• Occasional flexing:
  -35°C to +90°C
  Short circuit: +200°C (5s)
