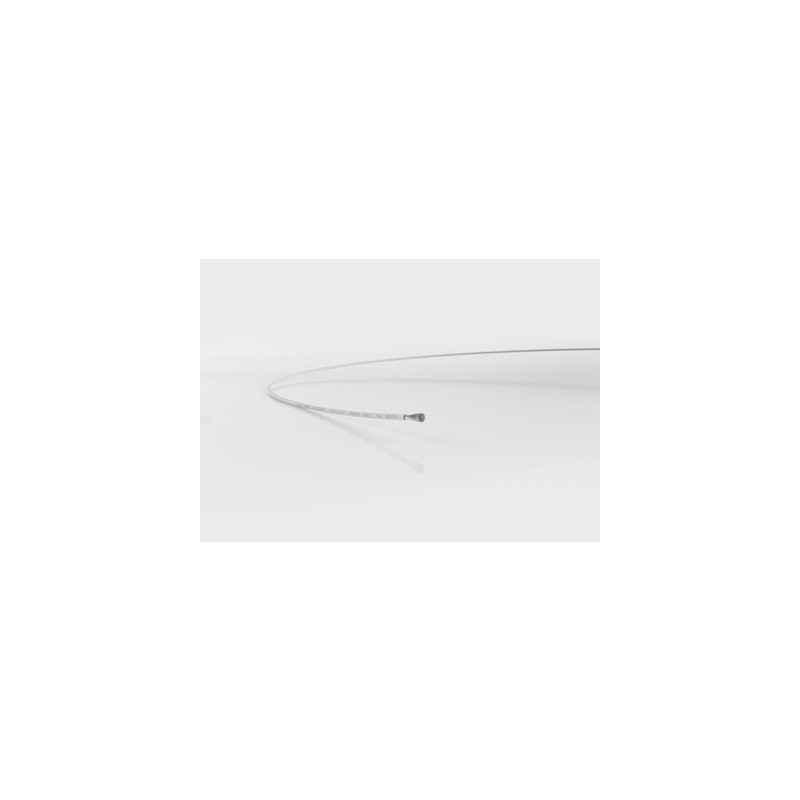

15301004S ÖLFLEX TRAIN 301 TW 300V 1X2,5 LAPP ÖLFLEX TRAIN 301 TW 300V 1X2,5

proceeds

• Reduced insulation wall thickness, thus saving installation space
• Good chemical resistance please see Appendix T1
• Resistant to mechanical aggression in adverse environmental situations
• Extended temperature range
• Reduced flame spreading increases the protection against damage to persons and property in the event of a fire

Scope of use

• For use in vehicles on rails, for fixed laying with protection and for applications where limited movements are expected
• Suitable for switchboards and control panels of trains and locomotives
• Also applicable in environments with oils and areas with high ambient temperature

Product features

• Fire performance according to EN/IEC:
  - Halogen-free according to EN 60754-1
  - No corrosive gases according to EN 60754-2
  - Fluoride-free according to EN 60684-2
  - No toxic gases according to EN 50305
  - Low smoke density according to EN 61034-2
  - Non-flame propagator according to EN 60332-1-2
  - Non-propagator of the fire according to EN 50305
• Fire behavior according to NF:
  - Gas toxicity according to NF X 70-100
  - Low smoke density according to NF X 10-702
  - Non-flame propagator according to NF C 32-070,
  Cat. C1 and C2
• Chemical properties:
  - oil resistant according to EN 50306
  - fuel resistant according to EN 50306
  - acid resistant according to EN 50306
  - alkaline resistant according to EN 50306
  - ozone resistant according to EN 50306
• Maximum permissible current intensity according to EN 50355, Annex A

Reference Standards / Approvals

• EN 50306-2, type M
• EN 45545-2 HL1, HL2, HL3
• NF F 16-101 - Rating: C/F0
  (flame/smoke spread)

Product composition

• Tinned copper braid, 19 or 37 wires, SRC (special round conductor)
• Insulation: composed of polymer cross-linked by electron beam according to EN 50306
• Driver color: white

ETS Classification 5

• ETIM 5.0 Class-ID: EC000993
• ETIM Class 5.0 Description: Unipolar Cable

ETTIM Rating 6

• ETIM 6.0 Class-ID: EC000993
• ETIM 6.0 Class-Description: Conductor Cable

Driver training

• SRC (special round conductor) 19 or 37 wires according to EN 50306-1

Minimum radius of curvature

• Fixed installation:
  4 x DE
  3 x DE for moderate flexion, once on the connection terminal
• Occasional flexible use:
  5 x DE
  (DE = outer diameter)

Nominal voltage

• U0: 600 V AC U0/U: 300/500 V AC conforming to 50306 Um: 550 V AC

Test voltage

• 3.5 kV AC; 8.4 kV DC

Temperature range

• Fixed installation: -45°C to +125°C (20,000 h) -50°C according to GOST 20.57.406-81
• Occasional flexible use:
  -35°C to +105°C
  Short circuit: +160°C (5s)
