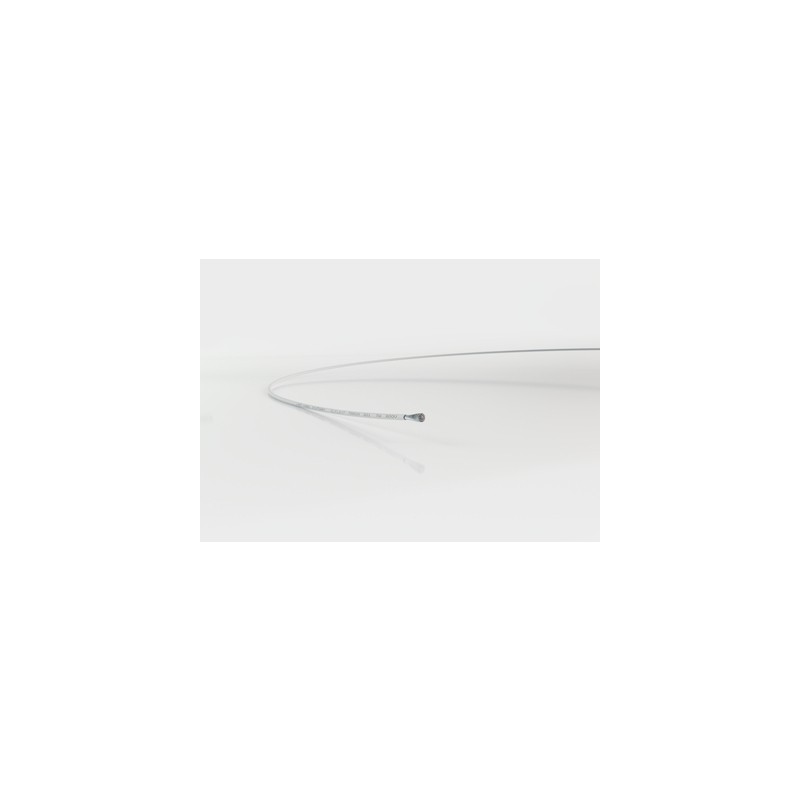

15301002 ÖLFLEX TRAIN 301 TW 300V 1X1 LAPP ÖLFLEX TRAIN 301 TW 300V 1X1

Benefits

• Reduced insulation wall thickness, thus space-saving installation
• Good chemical resistance please see Appendix T1
• Resistant to mechanical influences in harsh environmental conditions
• Extended temperature range
• Reduced flame spreading increases the protection against damage to persons and property in the event of a fire

Application range

• For use in railway vehicles, for fixed and protected installation and applications where limited movement may occur
• Suitable for switchboards and control panels of trains and locomotives
• Also applicable within oily environments and areas with increased ambient temperature

Product features

• Fire behaviour according to EN/IEC:
  - Halogen-free acc. to EN 60754-1
  - No corrosive gases acc. to EN 60754-2
  - No fluorine acc. to EN 60684-2
  - No toxic gases acc. to EN 50305
  - Low smoke density acc. to EN 61034-2
  - Flame-retardant acc. to EN 60332-1-2
  - No flame propagation acc. to EN 50305
• Fire behaviour according to NF:
  - Toxicity of gases acc. to NF X 70-100
  - Low smoke density acc. to NF X 10-702
  - No flame propagation acc. to NF C 32-070,
  Cat. C1 and C2
• Chemical properties:
  - Oil resistant acc. to EN 50306
  - Fuel resistant acc. to EN 50306
  - Acid resistant acc. to EN 50306
  - Alkali resistant acc. to EN 50306
  - Ozone resistant acc. to EN 50306
• Current rating according to EN 50355, appendix A

Norm references / Approvals

• EN 50306-2, type M
• EN 45545-2 HL1, HL2, HL3
• NF F 16-101 - Classification: C / F0
  (flame propagation / smoke)

Product Make-up

• Tinned-copper strand, 19 or 37 wires, SRC (Special Round Conductor)
• Insulation: Electron beam cross-linked Polymer compound acc. to EN 50306
• Colour of core insulation: white

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000993
• ETIM 5.0 Class-Description: Single core cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000993
• ETIM 6.0 Class-Description: Single core cable

Conductor stranding

• SRC (special round conductor) 19 or 37 wires acc. to EN 50306-1

Minimum bending radius

• Fixed installation:
  4 x OD
  3 x OD for careful bending, once at connecting terminal
• Occasional flexing:
  5 x OD
  (OD = outer diameter)

Nominal voltage

• U₀: 600 V AC
  U₀/U: 300/500 V AC acc. to EN 50306
  U_m: 550 V AC

Test voltage

• 3,5 kV AC; 8,4 kV DC

Temperature range

• Fixed installation:
  -45°C to +125°C (20.000 h)
  -50°C acc. to GOST 20.57.406-81
• Occasional flexing:
  -35°C to +105°C
  Short circuit: +160°C (5s)
