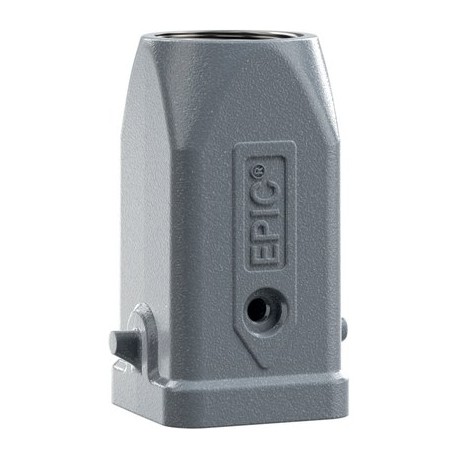

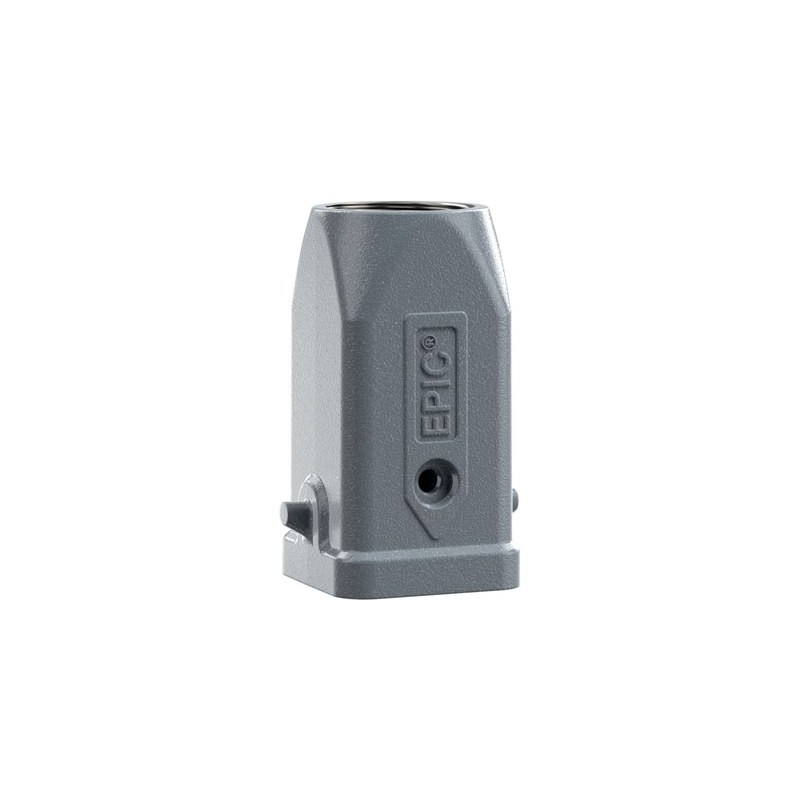

10426500 EPIC H-A 3 MTGV 11 KPL. HOOD LAPP EPIC H-A 3 MTGV 11 KPL. HOOD

Benefits

• The EPIC® H-A 3 series comprises the smallest housings in the heavy-duty industrial connector range and ensures secure connections in the smallest of spaces.
• The hood housing is mateable with many commercially available housings (panel-mount base, surface-mount base or coupler hood housings).
• Locking is via single lever on the counterpart.
• With threaded hole for use with a corresponding cable gland.
• The arrow as a new design element on the surface of the housing is easy to feel and simplifies plugging in spatially confined and possibly poorly visible application areas.

Application range

• To protect the connector insert from environmental influences.
• For use with many EPIC® rectangular connector inserts.
• For power supply connection of devices and machines in various applications.
• Withstands high environmental and mechanical stresses.

Product features

• Hood
• Bolts for single lever
• Straight cable entry
• Versions with / without cable gland
• Metal housing

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000437
• ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000437
• ETIM 6.0 Class-Description: Housing for industrial connectors

Material

• Housing: powder-coated zinc die-casting, grey
  Lever: zinc-plated steel

Protection rating

• IP 65 (latched)
• NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

• Certified production control: VDE-REG. no.: B437
• UL-tested:
  UL File Number: E75770

Temperature range

• -40°C to +100°C, short-term up to +125°C
