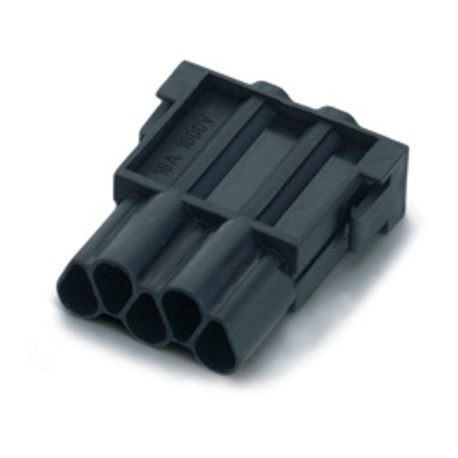

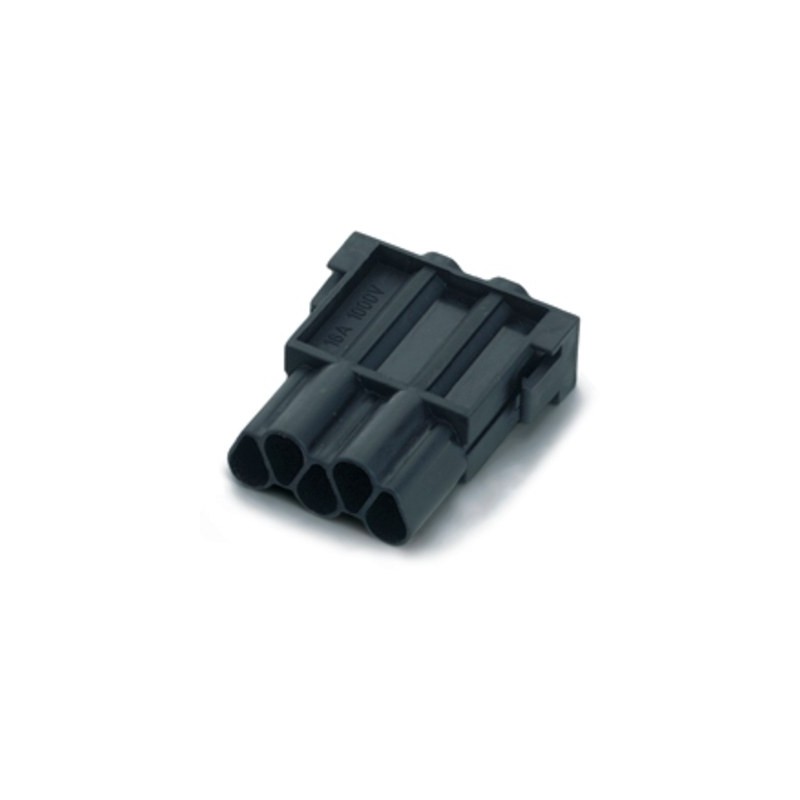

10383200 MCS 5 CG-HV MALE MODULE (1000 V/4+PE) LAPP MCS 5 CG-HV MALE MODULE (1000 V/4+PE)
10383200
MCS 5 CG-HV MALE MODULE (1000 V/4+PE)
LAPP
10
MCS 5 CG-HV MALE MODULE (1000 V/4+PE)
EPIC® MC module: HC4+PE
Connectors > Modular connector (industrial connector)
EPIC rectangular
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲The high-voltage signal and power module combine a greater number of functions, which ensures a high level of flexibility. It can be used, for example, in robotics.
- Suitable for processing with contacts on reel
- for automated production with crimping machine
Benefits
- The mix of different functions in one plug guarantees high flexibility
- Assembly of individual connectors, suitable for different applications
Application range
- Plant engineering
- Printing machines
- Control engineering
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002641
- ETIM 5.0 Class-Description: Modular connector (industrial connector)
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002641
- ETIM 6.0 Class-Description: Modular connector (industrial connector)
Rated voltage (V)
- 1000 V
Rated current (A)
- 16 A
Pollution degree
- 3
Contact resistance
- < 2 mOhm
Contacts
- Copper alloy, hard silver-plated
Number of contacts
- 4 + PE
Termination methods
- Crimp termination: 0.5 - 2.5 mm²
Cycle of mechanical operation
- 100
Temperature range
- -40°C to +100°C, short-term up to +125°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 10383200 MCS 5 CG-HV MALE MODULE (1000 V/4+PE) 10383200 EN_10383200.pdf | 426 Kbytes |
|
