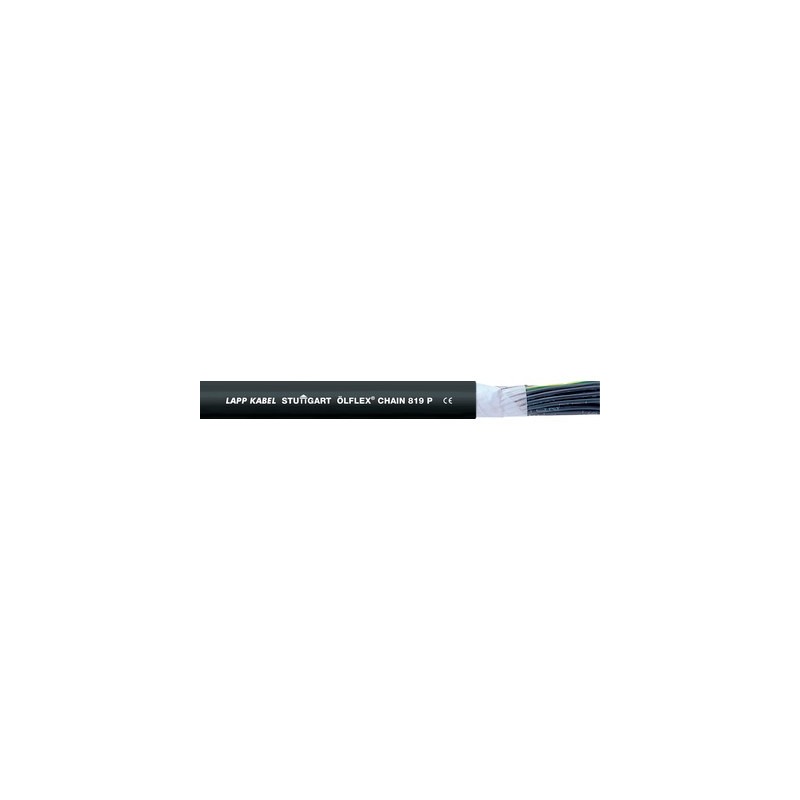

1027811 ÖLFLEX CHAIN 819 P 3G0,75 LAPP ÖLFLEX CHAIN 819 P 3G0,75

Benefits

• Good combination of quality and price
• Durable thanks to robust sheath material
• Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
• Multi-standard certification reduces part varieties and saves costs
• Certified for the USA and Canada for export-oriented machine, appliance and apparatus manufacturers

Application range

• In power chains or moving machine parts
• Very suitable for oily wet areas within machinery and production lines
• Suitable for use in measuring, control and regulating circuits
• Assembly lines, production lines, in all kinds of machines
• Indoor applications

Product features

• High oil-resistance
• Flammability:
  IEC/EN: 60332-1-2
  UL/CSA: Horizontal Flame, FT2
• Mechanically robust
• Low-adhesive surface

Norm references / Approvals

• USA: UL AWM Style 21576
  Canada: cUL AWM Style I/II A FT2
• UL File No. E63634
• For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

• Fine-wire, bare copper conductor
• Core insulation: PVC
• Cores twisted in layers
• Non-woven wrapping
• Outer sheath of Lapp-PU-Special Blend, black (similar RAL 9005)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Core identification code

• Black with white numbers acc. to VDE 0293-1

Conductor stranding

• Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Minimum bending radius

• Flexing: up from 10 x outer diameter
• Fixed installation: 4 x outer diameter

Nominal voltage

• IEC U0/U: 300/500 V
• UL: 1000 V

Test voltage

• Core/core: 4000 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• Flexing: -5°C to +70°C (UL: +80°C)
• Fixed installation: -40°C to +70°C
  (UL: +80°C)

Bending cycles & operation parameters

• See Selection Table A2-1 in the appendix of our online catalogue
