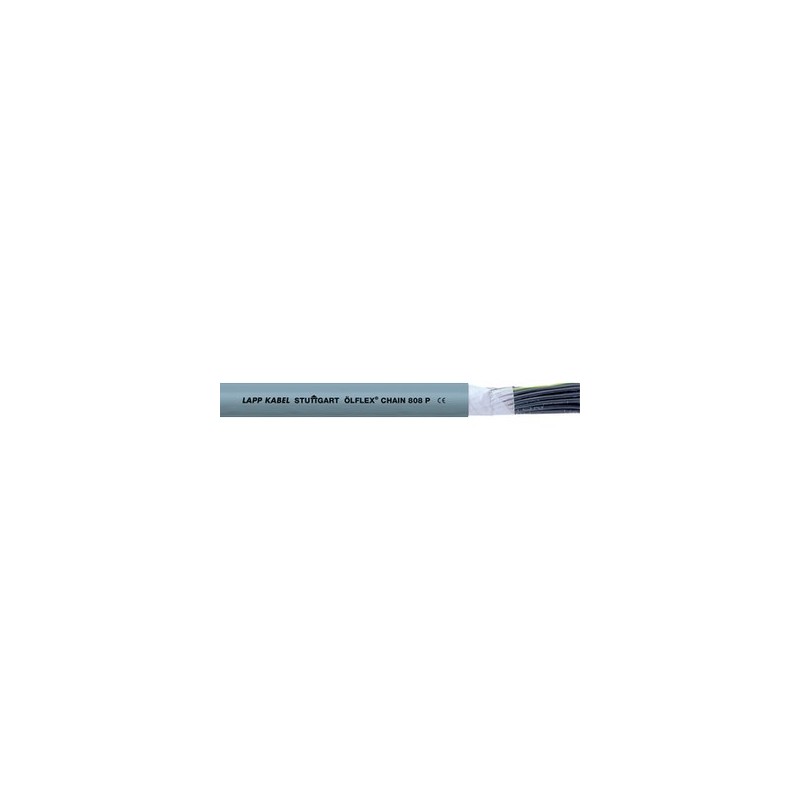

1027709 ÖLFLEX CHAIN 808 P 3G0,75 LAPP Highly flexible control cable with PVC core insulation and abrasion a..

Benefits

• Good combination of quality and price
• Compact design
• Increased durability under harsh conditions thanks to robust PUR outer sheath
• Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media

Application range

• In power chains or moving machine parts
• Particularly in wet areas of machine tools and transfer lines
• Suitable for use in measuring, control and regulating circuits
• Assembly lines, production lines, in all kinds of machines

Product features

• High oil-resistance
• Abrasion and notch-resistant
• Low-adhesive surface

Norm references / Approvals

• Based on EN 50525-2-21
• For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

• Fine-wire, bare copper conductor
• Core insulation: PVC
• Cores twisted in layers
• Non-woven wrapping
• PUR outer sheath, grey (similar RAL 7001)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• Black with white numbers acc. to VDE 0293-1

Conductor stranding

• Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Minimum bending radius

• Flexing: up from 10 x outer diameter
• Fixed installation: 4 x outer diameter

Nominal voltage

• U0/U: 300/500 V

Test voltage

• Core/core: 4000 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• Flexing: -5°C to +70°C
• Fixed installation: -40°C to +80°C

Bending cycles & operation parameters

• 2 mio. cycles
