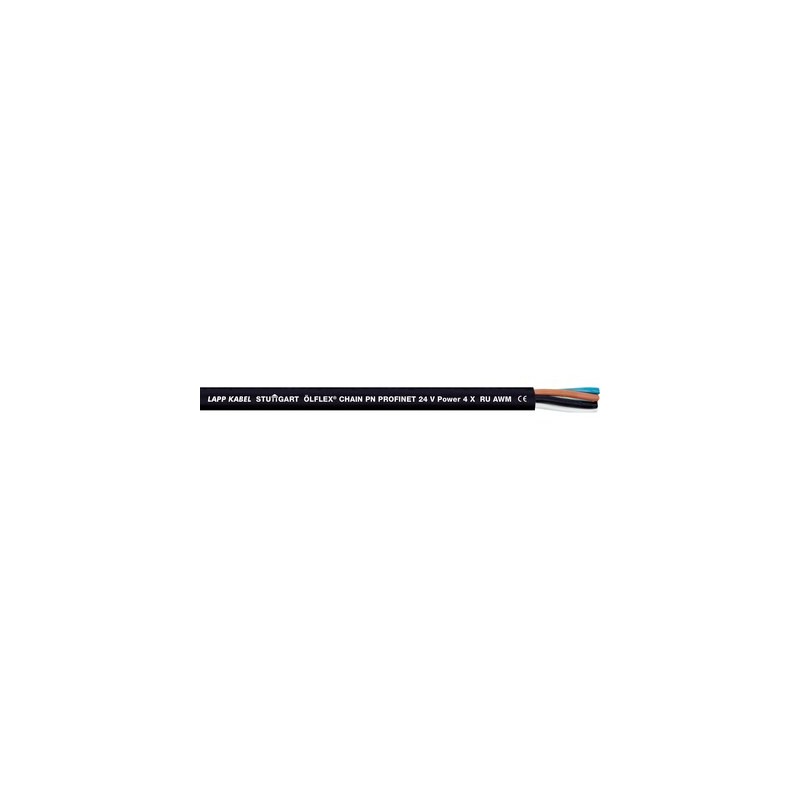

1026793 ÖLFLEX CHAIN PN 4 X 1,5 LAPP ÖLFLEX CHAIN PN 4 X 1,5

proceeds

• Compact design
• Its multiple certificates allow to reduce the stocks of different products, thus reducing storage costs
• Certified for the U.S. and Canada for manufacturers and exporters of machinery, devices, and appliances.

Scope of use

• For cable chains or moving parts of machines
• For dry and wet interiors
• Use in measurement, command and control circuits.
• Wiring of machines, tools, devices, appliances and electrical and control cabinets.
• Exclusive outdoor use only if protected against UV and within the indicated temperature range

Product features

• Designed for a service life of 2 million bending cycles and a horizontal travel distance of up to 10m
• Suitable for torsion applications in the "drip loop" of wind turbines (WTG)
• Fire performance: UL/CSA VW-1, FT1 IEC/EN 60332-1-2
• Oil resistance according to DIN EN 50290-2-22 (TM54)
• Low adhesion surface

Reference Standards / Approvals

• UL AWM Style 20886
• cUL AWM II A/B FT1
• UL File No. E63634
• Use on cable chains: please pay attention to the assembly guidelines in Appendix T3.

Product composition

• Fine bare copper wires
• PVC insulation
• Layered braided conductors
• Nonwoven envelope
• Outer Shell: Heat-resistant PVC
• Cover Color:
  4 conductors: black (RAL 9005),
  5 conductors: grey (RAL 7001)

ETS Classification 5

• ETIM 5.0 Class ID: EC001578
• ETIM Class 5.0 Description: Flexible Cable

Driver Identification Code

• brown (L1), blue (N1), black (L2), white (N2)
  5 conductors: additionally, pink (FE)

Driver training

• Fine wire, according to VDE 0295 CIase 5 / IEC 60228 CIase 5

Torque movement in WTG

• TW-0 and TW-1, see Appendix T0

Minimum radius of curvature

• For flexible use: on self-supporting and non-slip chains: 10 times the outer diameter, on sliding chains: 12 times the outer diameter
• Fixed installation: 4 x outside diameter

Nominal voltage

• VDE: U0/U: 300 V
• UL & CSA: 1000 V

Test voltage

• 1500 V

Protective conductor

• G = with pink functional ground (FE)
• X = no functional soil (FE)

Temperature range

• Mobile: VDE 0 °C to +90 °C; UL: up to +90°C
• Fixed installation: VDE -40 °C to +90 °C; UL/CSA: up to +90°C

Continuous bending cycles

• 2 million cycles
