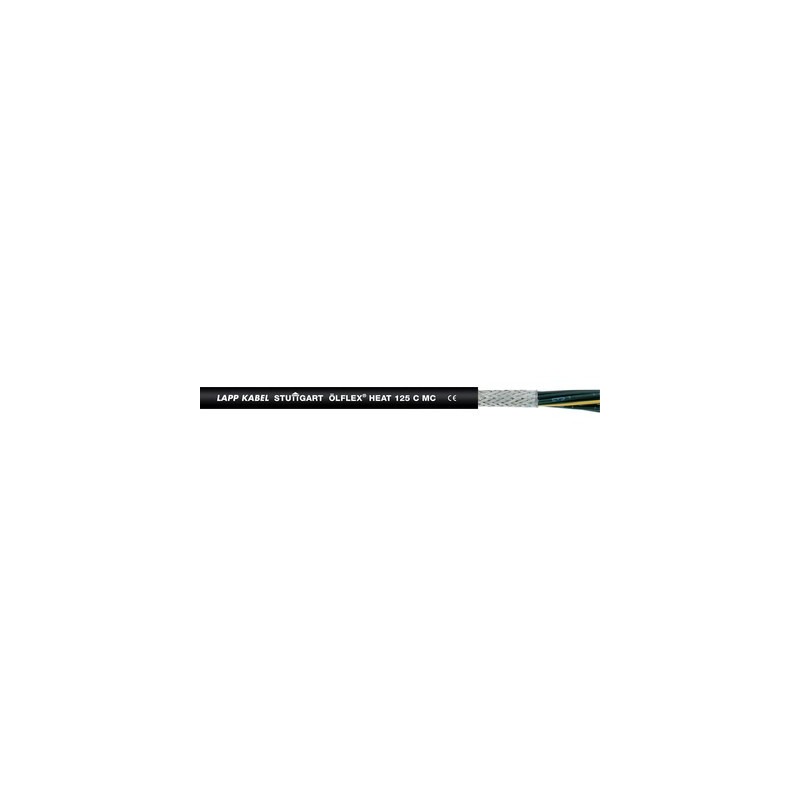

1024400 ÖLFLEX HEAT 125 C MC 2X0.5 LAPP ÖLFLEX HEAT 125 C MC 2X0,5

Benefits

• For safety in areas with high density of people
• Reduction of flame propagation, density and toxicity of smoke gases in event of fire
• Minimises damage to buildings and equipment caused by the formation of toxic acid fumes in fires
• Certified for maritime applications
• Copper braiding screens the cable against
  electromagnetic interference

Application range

• For outdoor applications
• For the wiring and connection of lighting, heating appliances, control cabinets, and distributors in mechanical and plant engineering
• For use in traffic regulation systems and outdoors
• Coil winding, electromagnets, pumps, electrical systems
• Heat treatment plants, pressure die casting, heating and cooling technology

Product features

• Fire behaviour:
  - Halogen-free (IEC 60754-1)
  - No corrosive gases (IEC 60754-2)
  - Low smoke density (IEC 61034-2)
  - Flame-retardant (IEC 60332-1-2,
  NF C 32-070 (C1) and
  NF-F 16-101 (Class C))
  - Low toxicity (EN 50305)
• No flame-propagation according to IEC 60332-3-22, IEC 60332-3-24 and IEC 60332-3-25 (Flame spread on vertical cable bundle)
• Oil-resistant acc. IEC 60227-1 (ST9) and EN 50264-1 (EM104)
• UV-resistant according to ISO 4892-2
• Ozone-resistant according to EN 50396

Norm references / Approvals

• DNV GL approved
• Based on EN 50525-3-21 and EN 50525-3-41

Product Make-up

• Fine-wire, tinned-copper conductor
• Electron beam cross-linked polyolefin copolymer insulation
• Cores twisted in layers
• Tinned-copper braiding
• Outer sheath: electron beam cross-linked polyolefin copolymer, black

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• Colour-coded according to VDE 0293-308, refer to Appendix T9
  or black with white numbers
• refer to article table

Specific insulation resistance

• >2 TOhm x cm

Conductor stranding

• Fine wire according to VDE 0295,
  class 5/IEC 60228 class 5

Minimum bending radius

• Occasional flexing: 15 x outer diameter
• Fixed installation: 5 x outer diameter

Nominal voltage

• Up to 1.0mm² U0/U 300/500 V
  From 1.5mm² U0/U 450/750 V
• 0.6/1kV from 1.5 mm² in the case of fixed and protected installation

Test voltage

• C/C 4000 V, C/S 2500 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• Occasional flexing: -35 °C to +120 °C
• Fixed installation: -55°C to +125°C
  Temporary (3.000h): up to +145°C
