1023280 ÖLFLEX SERVO FD 7DSL 4G4+(2x1)+(2x22A) LAPP ÖLFLEX SERVO FD 7DSL 4G4+(2x1)+(2x22A)

Benefits

• Allows much faster speed and accelerations which increases the economic efficiency of the machines
• Only one connection line between drive and motor-feedback system. Instead of the encoder cable a specific integrated data pair takes over the signalling.
• Less cables and reduced connection costs
• Space and weight savings thanks to hybrid cable design
• Increased durability under harsh conditions thanks to robust PUR outer sheath
• Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media

Application range

• Power drive systems in automation engineering
• Connecting cable between servo controller and motor
• In power chains or moving machine parts
• For use in assembling & pick-and-place machinery
• Particularly in wet areas of machine tools and transfer lines

Product features

• Maximum DSL transmission length: 100m
• Flammability:
  UL/CSA: VW-1, FT1
  IEC/EN: 60332-1-2
• Halogen-free materials
• Low-capacitance design
• Oil-resistant

Norm references / Approvals

• UL AWM Style 21223
  cRU AWM I/II A/B FT1
• UL File No. E63634
• For use in power chains: Please comply with assembly guideline Appendix T3

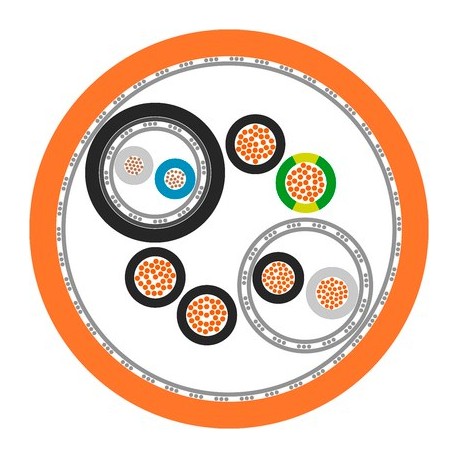

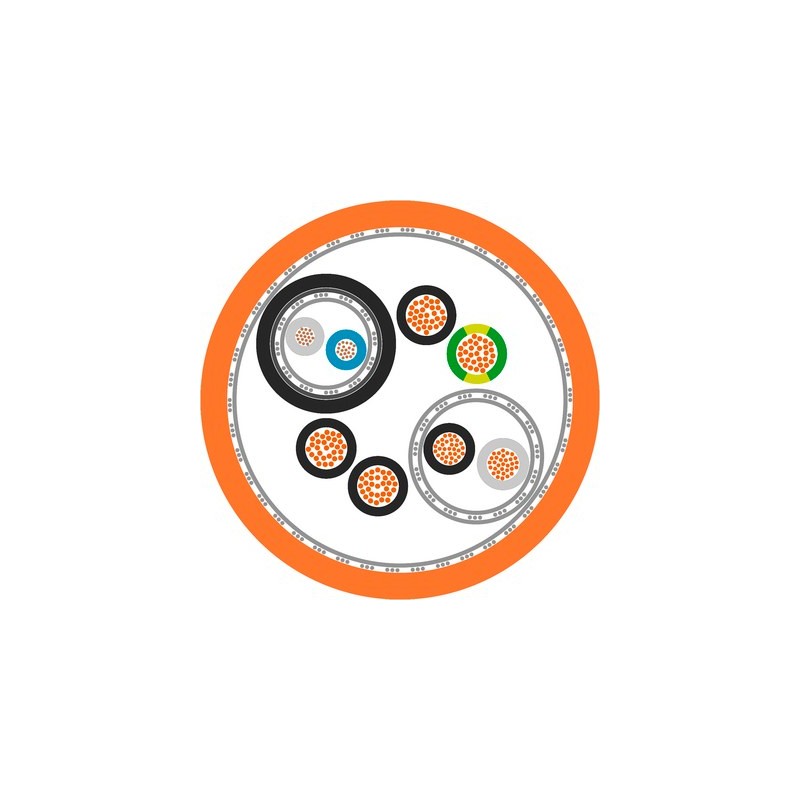

Product Make-up

• Extra-fine-wire, bare copper conductor (power cores and control pair) and 19-wire, tinned copper conductor (data pair)
• Core insulation: polypropylene (PP)
• Individual design depending on the item: power cores without or with one screened control pair and one DSL data pair twisted together
• Non-woven wrapping
• Tinned-copper braiding
• PUR outer sheath, orange (RAL 2003)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• Power cores: black with marking U/L1/C/L+; V/L2; W/L3/D /L-; GN/YE protective conductor
• Signal pair: white, blue
  Control pair (optional): black with white numbers 5 + 6

Conductor stranding

• Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6
• DSL data pair: 19-wired

Minimum bending radius

• Flexing: up from 7.5 x outer diameter
• Fixed installation: 5 x outer diameter

Nominal voltage

• Power and control:
  IEC: U0/U: 600/1000 V
  UL: 1000 V
  Signal pair: 300 V

Test voltage

• Power and control: 4 kV
  Data pair: 1kV

Protective conductor

• G = with GN-YE protective conductor

Temperature range

• Flexing: -40°C to +90°C
  (UL: +80°C)
• Fixed installation: -50°C to +90°C
  (UL: +80°C)

Bending cycles & operation parameters

• See Selection Table A2-1 in the appendix of our online catalogue
