1020042 ÖLFLEX SERVO 719 CY 4G1,5+(2x0,5) LAPP ÖLFLEX SERVO 719 CY 4G1,5+(2x0,5)

Benefits

• Suitable for use with servomotor product lines from leading drive manufacturers
• Longer cable installation lengths thanks to low mutual capacitance cable design
• Multi-standard certification reduces part varieties and saves costs
• Space and weight-saving installations due to small cable diameters
• Copper braiding screens the cable against
  electromagnetic interference

Application range

• Connecting cable between servo controller and motor
• For static and occasionally flexible use
• Plant engineering
• Industrial machinery and machine tools
• Printing machines

Product features

• Low capacitance
• Flammability:
  UL/CSA: VW-1, FT1
  IEC/EN: 60332-1-2
• Oil-resistant
• EMC-compliant

Norm references / Approvals

• USA: UL AWM Style 2570
  Canada: cUL AWM Style I/II A/B FT1
• UL File No. E63634

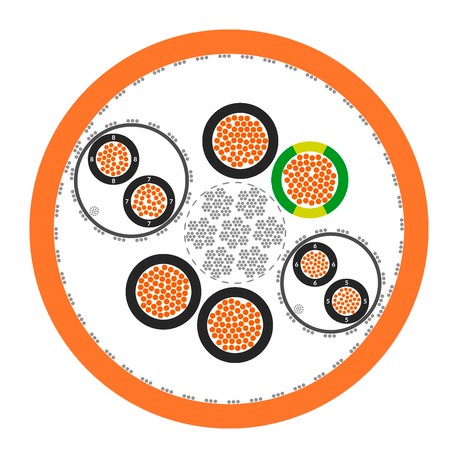

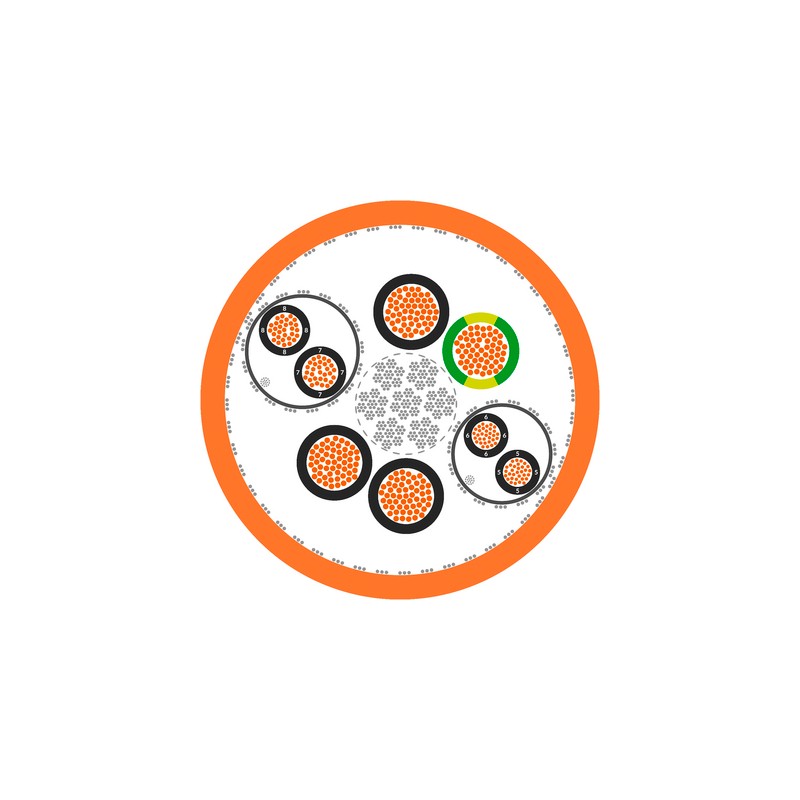

Product Make-up

• Fine-wire, bare copper conductor
• Core insulation: polypropylene (PP)
• Individual design depending on the item:
  Power cores without or with one or two individually shielded control core pairs twisted together in short lay lengths;
  Power cores with control core triplet twisted together in short lay lengths
• Tinned copper screen braiding
• PVC outer sheath, orange (RAL 2003)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• Power cores: black with marking U/L1/C/L+; V/L2; W/L3/D /L-; GN/YE protective conductor
• Single-paired versions: individual design depending on the item black; white or brown; white
  Double-paired versions: black with white numbers 5; 6; 7; 8
  0.34 mm² pairs: WH/BN/GN/YE
  Triplet: black with white numbers 1; 2; 3

Conductor stranding

• Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Minimum bending radius

• Occasional flexing: 15 x outer diameter
• Fixed installation: 6 x outer diameter

Nominal voltage

• Power cores and control cores:
  IEC U0/U: 600/1000 V
• UL & CSA: 1000 V

Test voltage

• Core/Core: 4 kV
• Core/Screen: 4 kV

Protective conductor

• G = with GN-YE protective conductor

Temperature range

• Occasional flexing:
  -5°C to +70°C (UL: +80°C)
  Fixed installation: -40°C to +80°C
