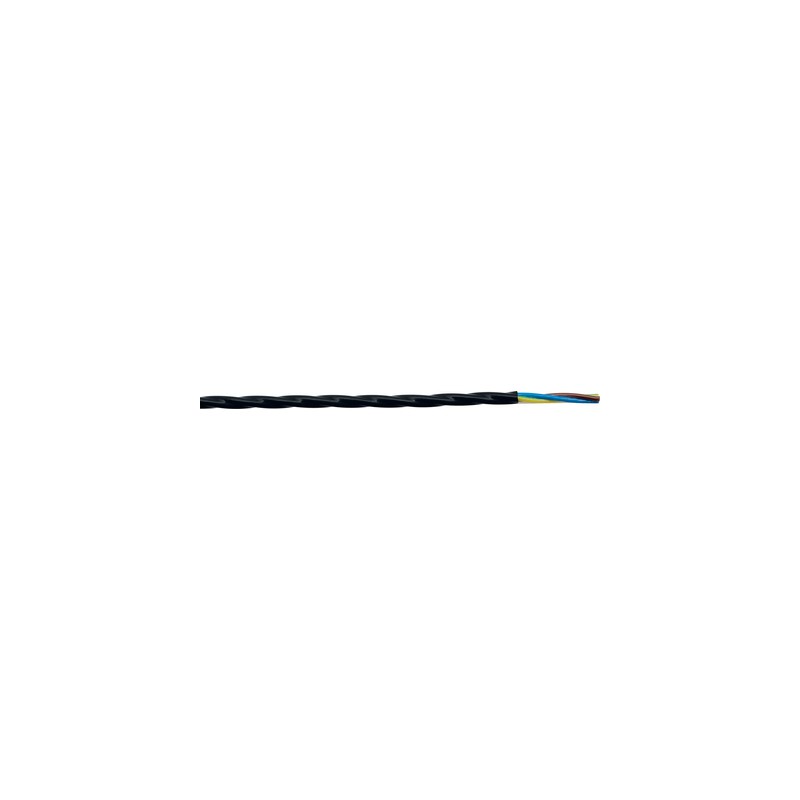

00912423 ÖLFLEX HEAT 205 MC 4G4 LAPP ÖLFLEX HEAT 205 MC 4G4
00912423
ÖLFLEX HEAT 205 MC 4G4
LAPP
100 m.
ÖLFLEX HEAT 205 MC 4G4
ÖLFLEX® HEAT 205 MC
Cables > Power cable less 1 kV, for moving application
ÖLFLEX HEAT Temperature measurement cables
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲ÖLFLEX® HEAT 205 MC - FEP power cable, robust, chemical resistant and space-saving, for use in machine and plant construction at temperatures: -100°C to +205°C
- Good chemical resistance please see Appendix T1
- Wide temperature application range
- Thin, light and robust
Benefits
- Space and weight-saving installations due to small cable diameters
- Resistant to contact with mostly all highly aggressive chemical media
- Low outgassing behaviour
- Due to good electrical and mechanical properties suitable for sensor technology
Application range
- For use in environments with very high operating temperatures, heavy usage of chemical agents or confined spaces
- Typical fields of application
- Industrial furnace construction
- Foundries
- Chemical industry
- Power plant engineering
- Paint shop line technology
- Heating elements
- Polymer processing
- Wind turbine engineering - Sensor systems, e.g. level sensors
Product features
- ÖLFLEX® HEAT 205 made of FEP
- Outstanding resistance against acids,
solvents, lacquers, petrol, oils and many
other chemical media
- Difficult to inflame
- High dielectric strength and high abrasion
resistance
- Low water absorption
- Resistant to microbes
- Adhesion free insulation materials
- Weather and ozone resistant
- Hydrophobic and dirt-repellent
- High elongation and tear resistance
- Resistant against hydraulic fluids - Flame-retardant
Product Make-up
- Fine-wire, tinned-copper conductor
- FEP-based core insulation
- Cores twisted together
- FEP-based outer sheath, black
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001578
- ETIM 5.0 Class-Description: Flexible cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001578
- ETIM 6.0 Class-Description: Flexible cable
Core identification code
- Up to 5 cores: colour-coded acc. to VDE 0293-308
From 7 cores: ÖLFLEX® colour-codes, refer to Appendix T7
Conductor stranding
- Fine wire acc. to VDE 0295, class 5 / IEC 60228 class 5 from 0.5 mm²
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- 2500 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Fixed installation: -100°C to +205°C
Datasheet - PDF
