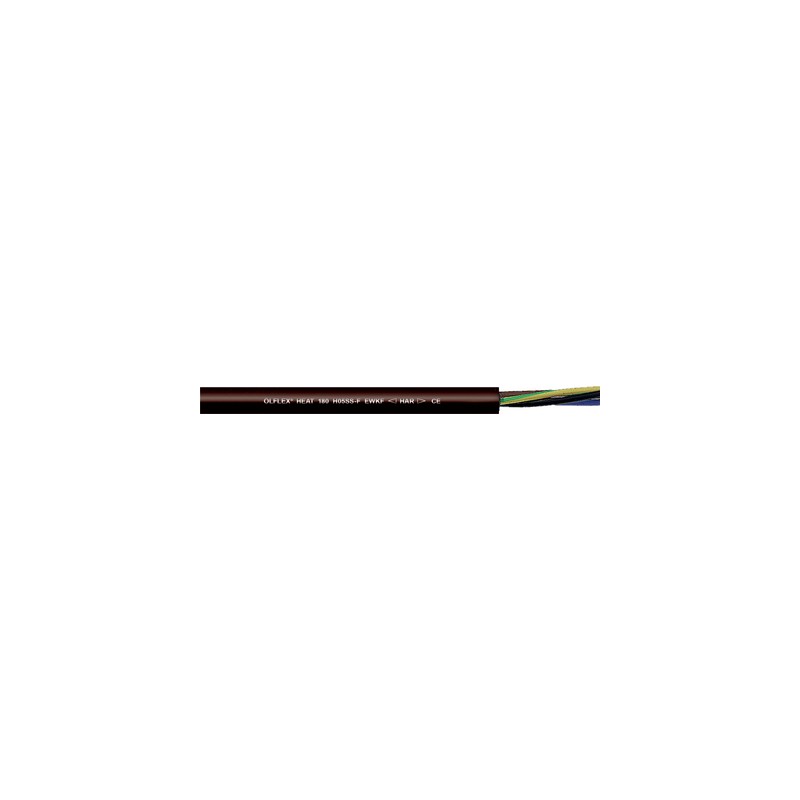

0046904 ÖLFLEX HEAT 180 H05SS-F EWKF 2X1 LAPP ÖLFLEX HEAT 180 H05SS-F EWKF 2X1

Benefits

• Harmonised use in Europe
• Notch and tear-resistant silicone compounds reduce damage due to mechanical stress
• For harsh environments, more durable than conventional H05SS-F standardised cables
• Flexibility simplifies installation where space is limited
• Possesses insulating properties after combustion due to remaining SiO2 ash on the conductor

Application range

• Areas with high ambient temperatures and occasionally mechanical stress
• Typical fields of application
  - Steel, ceramic and iron works
  - Bakery equipment and industrial furnaces
  - Electric motor industry
  - Sauna/solarium construction
  - Thermal and heating elements
  - Lighting technology
  - Ventilator engineering
  - Air-conditioning technology
  - Galvanisation technology

Product features

• EWKF:
  Initial tear propagation and notch resistance
• Halogen-free (IEC 60754-1), no corrosive gases (IEC 60754-2), flame-retardant (IEC 60332-1-2)
• Good hydrolysis and UV-resistance
• Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances
• Adequate ventilation must be ensured, since the mechanical properties of silicone cables decrease from +100°C in the absence of air

Norm references / Approvals

• EN 50525-2-83 (H05SS-F)

Product Make-up

• Fine-wire, tinned-copper conductor
• Core insulation: based on EWKF silicone
• Cores twisted together
• Outer sheath: silicone-based EWKF, notch-resistant, black

Classification ETIM 5

• ETIM 5.0 Class-ID: EC001578
• ETIM 5.0 Class-Description: Flexible cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC001578
• ETIM 6.0 Class-Description: Flexible cable

Core identification code

• Colours according to VDE 0293-308, refer to Appendix T9

Conductor stranding

• Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Minimum bending radius

• Occasional flexing: 15 x outer diameter
• Fixed installation: 4 x outer diameter

Nominal voltage

• U0/U: 300/500 V

Test voltage

• 2000 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• -50 °C to +180 °C
  (adequate ventilation required)
