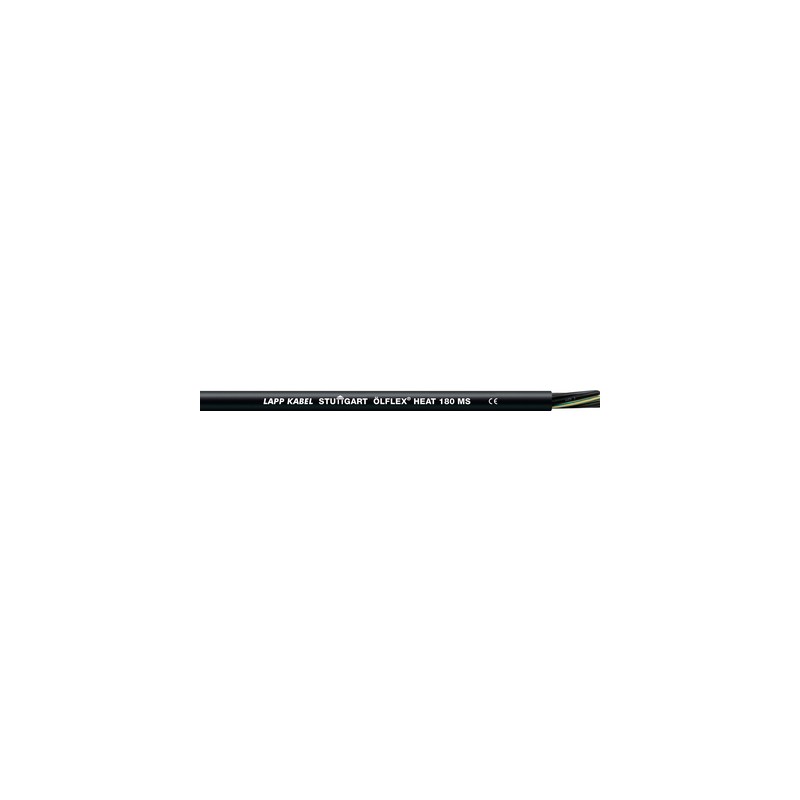

0046601 ÖLFLEX HEAT 180 MS 3G0,5 LAPP ÖLFLEX HEAT 180 MS 3G0,5

Benefits

• Certified for the USA and Canada for export-oriented machine, appliance and apparatus manufacturers
• Thicker cable design meets the requirements of the FT-1 flame test and also approved for the external interconnection of apparatuses and appliances
• Flexibility simplifies installation where space is limited
• Possesses insulating properties after combustion due to remaining SiO2 ash on the conductor

Application range

• Areas with high ambient temperatures where insulating and sheath materials of conventional cables will embrittle after a short while
• Typical fields of application
  - Steel, ceramic and iron works
  - Bakery equipment and industrial furnaces
  - Electric motor industry
  - Sauna/solarium construction
  - Thermal and heating elements
  - Lighting technology
  - Ventilator engineering
  - Air-conditioning technology
  - Galvanisation technology

Product features

• Halogen-free (IEC 60754-1), no corrosive gases (IEC 60754-2)
• Flame-retardant acc. to IEC 60332-1-2, Cable Flame Test, CSA FT 1
• Good hydrolysis and UV-resistance
• Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances
• Adequate ventilation must be ensured, since the mechanical properties of silicone cables decrease from +100°C in the absence of air

Norm references / Approvals

• UL AWM 4476 and cUL AWM II A/B
  Construction B, External wiring
• UL File No. E63634

Product Make-up

• Fine-wire, tinned-copper conductor
• Silicone-based core insulation
• Cores twisted together
• Silicone-based outer sheath,
  colour black

Classification ETIM 5

• ETIM 5.0 Class-ID: EC001578
• ETIM 5.0 Class-Description: Flexible cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC001578
• ETIM 6.0 Class-Description: Flexible cable

Core identification code

• Colours according to VDE 0293-308, refer to Appendix T9
• From 6 cores: black with white numbers

Conductor stranding

• Fine wire according to VDE 0295,
  class 5/IEC 60228 class 5
• (Refer to Appendix T16 for the matching US conductor sizes in AWG standard)

Minimum bending radius

• Occasional flexing: 15 x outer diameter
• Fixed installation: 4 x outer diameter

Nominal voltage

• U0/U: 300/500 V
  Working voltage UL: 600 V

Test voltage

• 2000 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• According to VDE: -60 °C to +180 °C
• UL/cUL: up to +150°C
  (adequate ventilation required)
