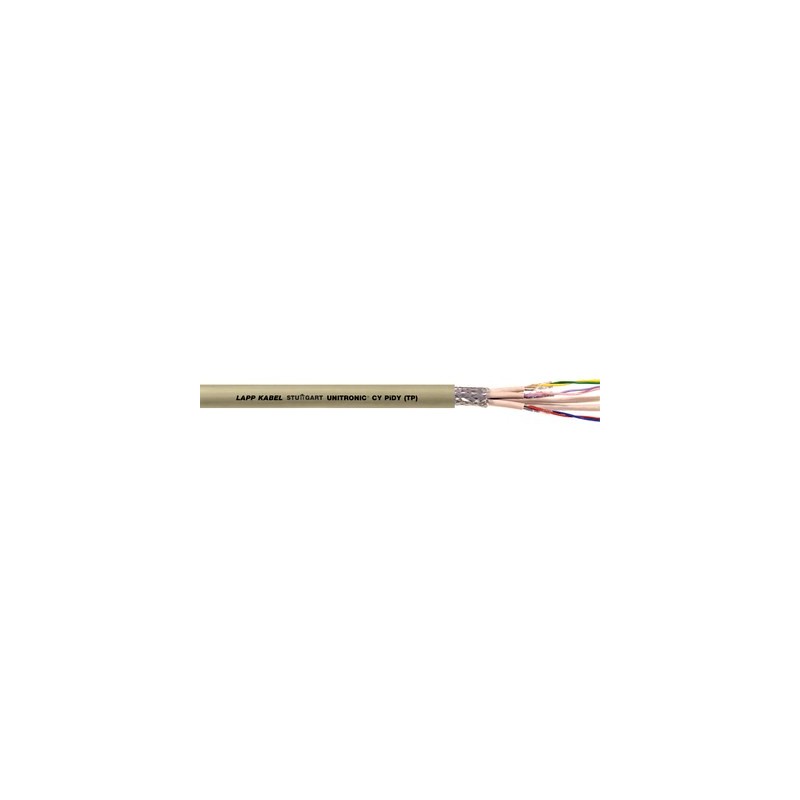

0034258 UNITRONIC CY PiDY (TP) 12x2x0,25 LAPP UNITRONIC CY PiDY (TP) 12x2x0,25

Benefits

• Decoupling of circuits by means of
  twisted-pair (TP) design (crosstalk effects)
• Individually screened pairs and the overall braid minimise electrical interference

Application range

• Cable should be used in areas with high levels of electromagnetic interferences
• Data processing, process control systems, machining centres, security systems and electronics
• Suitable for the transmission with varying in frequency and voltage or sensitive signals
• For fixed installation and flexible use
• Dry or damp rooms

Product features

• The cable remains flexible despite multiple screening
• Flame-retardant according IEC 60332-1-2

Norm references / Approvals

• Based on VDE 0812

Product Make-up

• Fine-wire strand made of bare copper wires
• Core insulation made of PVC
• Cores twisted into pairs
• Copper wrapping over pairs
• Inner sheath made of PVC over screened pairs
• Tinned-copper braiding
• Outer sheath made of PVC
  Outer sheath colour: grey (similar to pebble grey/ RAL 7032)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• DIN 47100, refer to Appendix T9

Mutual capacitance

• C/C: approx. 120 nF/km
  C/S: approx. 160 nF/km

Inductivity

• approx. 0.65 mH/km

Conductor stranding

• Stranded conductor, fine-wire

Minimum bending radius

• Fixed installation: 6 x outer diameter

Loop resistance

• < 160 Ohm/km

Characteristic impedance

• Approx. 65 Ohm

Temperature range

• Occasional flexing: -5°C to +70°C
• Fixed installation: -40°C to +80°C
