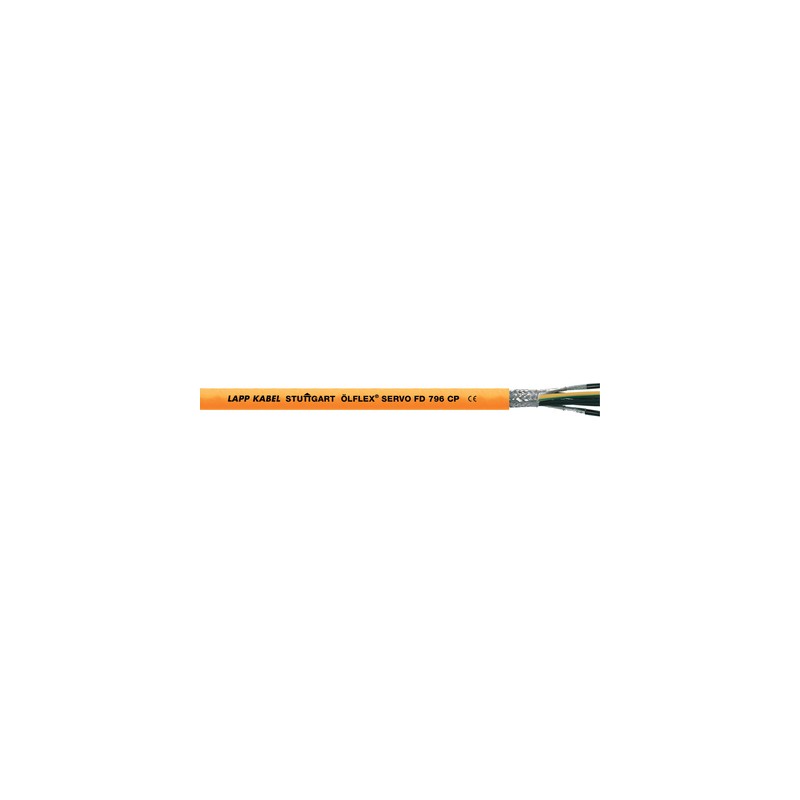

0027948 ÖLFLEX SERVO FD 796CP 4G1,5+(2x1) LAPP ÖLFLEX SERVO FD 796 CP 4G1,5+(2x1,0)

proceeds

• For faster moving processes and thus increases the efficiency of the machines
• Suitable for use with servo motor ranges from market-leading manufacturers
• Low capacity construction allows for longer cable lengths between converter and drive
• Resistant to contact with lubricants based on mineral oil, dilute acids, aqueous alkaline solutions and other chemical agents
• Extended temperature range for applications in severe environmental conditions
• Copper braid screen acts as protection against electromagnetic interference

Scope of use

• Connection cable between the servo controller and the motor
• For cable chains or moving parts of machines
• For use in pick & place and assembly machinery
• Especially suitable for wet areas of machine tools and transfer lines
• Assembly lines, production lines, in any type of machinery.
• For indoor and outdoor use

Product features

• Fire performance: UL/CSA VW-1, FT1 IEC/EN 60332-1-2
• Halogen-free materials
• Resistant to abrasion and cuts
• Oil resistant

Reference Standards / Approvals

• Reg. VDE No. 8591 (0027925,.. 926,.. 927,.. 930 in preparation), UL AWM Style 20234, cULus AWM I/II A/B, 1000 V 80° FT1 CSA AWM I/II A, 1000 V 80° FT1
• UL File No. E63634
• Use on cable chains: please pay attention to the assembly guidelines in Appendix T3.

Product composition

• Conductor of braided bare copper extrafine wires (class 6)
• Conductor isolation: polypropylene (PP)
• Individual execution of the article:
  power conductors without or with one or two pairs of separately shielded control cables together in short braiding lengths; power conductors with triplet control cables together in short braiding lengths
• Nonwoven envelope
• Tinned copper braid screen
• Orange polyurethane (PUR) cover (RAL 2003)

ETS Classification 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class Description: Control Cable

ETTIM Rating 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control Line

Driver Identification Code

• Power conductors: black with U/L1/C/L+ marking; V/L2; W/L3/D /L-; GN/YE protection conductor
• Single-pair versions: individual execution of the black article; white or brown; white
  Two-pair versions: black with 5 blank numbers; 6; 7; 8
  0.34 mm² pairs: WS/BR/GN/GE
  Three-thread versions: black with white numbers 1; 2; 3

Driver training

• Extra-thin wire, according to VDE 0295 CIase 6 / IEC 60228 CIase 6

Minimum radius of curvature

• For flexible use: from 7.5 times the outer diameter (up to 16 mm²), from 10 times the outer diameter (from 25 mm²)
• Fixed installation: 4 x outside diameter

Nominal voltage

• Power and control conductors:
  IEC: U₀/U: 600/1000 V
• UL & CSA: 1000 V

Test voltage

• Driver/conductor: 4 kV
• Driver / Display: 2 kV

Protective conductor

• G = with AM/VE protection conductor

Temperature range

• Flexible use: -40°C to +90°C (UL/CSA: +80°C)
• Fixed installation: -50°C to +90°C (UL/CSA: +80°C)

Continuous bending cycles

• See the selection table A2-1 in the annex to our online catalogue
