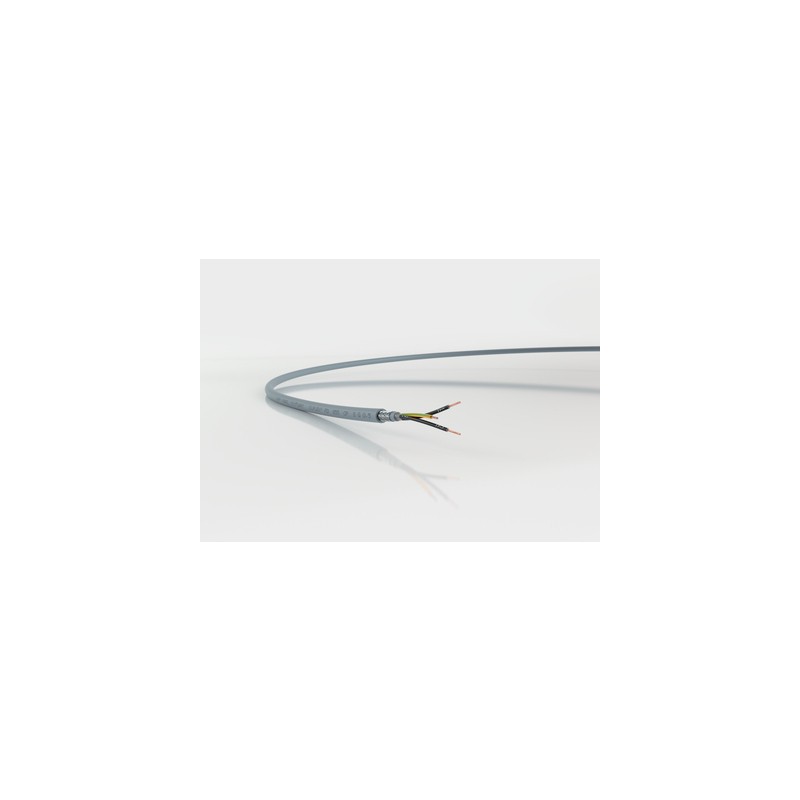

0027646 ÖLFLEX FD 855 CP 36G1 LAPP ÖLFLEX FD 855 CP 36G1

Benefits

• Allows much faster speed and accelerations which increases the economic efficiency of the machines
• Increased durability under harsh conditions thanks to robust PUR outer sheath
• Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
• Wide temperature range for applications in harsh climatic environments
• Multi-standard certification reduces part varieties and saves costs
• Copper screening complies with EMC requirements and protects against electromagnetic interference

Application range

• In power chains or moving machine parts
• Particularly in wet areas of machine tools and transfer lines
• For use in assembling & pick-and-place machinery
• Assembly lines, production lines, in all kinds of machines
• In EMC-sensitive environments
• For indoor and outdoor use

Product features

• Good mechanical, abrasion and notch-resistance
• Halogen-free and flame-retardant
  (IEC 60332-1-2)
• Resistant to oil and drilling fluids according to IEC 61892-4, Appendix D
• Flexible down to -40°C
• Low-adhesive surface
• EMC-compliant

Norm references / Approvals

• Based on VDE 0250 / 0285
• USA: UL AWM Style 21576 with add. VW-1
  Canada: cUL AWM Style I/II A/B FT1
• UL File No. E63634
• For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

• Extra-fine wire strand made of bare copper wires (class 6)
• Core insulation: TPE
• Cores twisted together in extremely short lay lengths
• Non-woven wrapping
• Inner sheath made of TPE
• Tinned-copper braiding
• PUR outer sheath, grey (similar RAL 7001)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• Black with white numbers acc. to VDE 0293-334

Conductor stranding

• Extra-fine wire acc. to VDE 0295, class 6/ IEC 60228 class 6

Minimum bending radius

• Flexing: up from 7.5 x outer diameter
• Fixed installation: 4 x outer diameter

Nominal voltage

• IEC U0/U: 300/500 V
• UL: 1000 V

Test voltage

• 3000 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• Flexing: -40°C to +80°C
• Fixed installation: -50°C to +80°C

Bending cycles & operation parameters

• See Selection Table A2-1 in the appendix of our online catalogue
