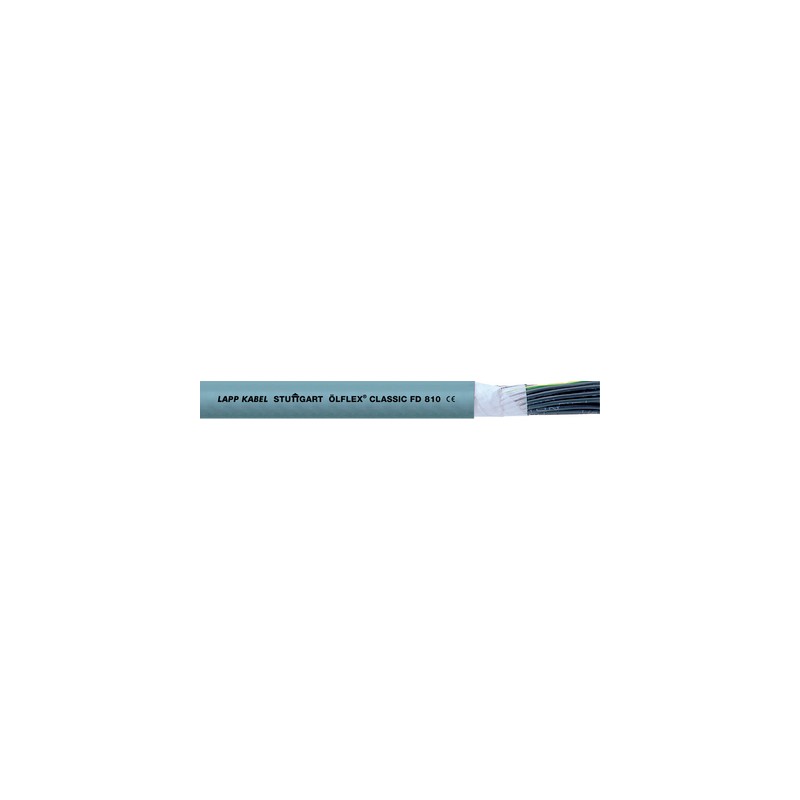

0026100 ÖLFLEX CLASSIC FD 810 2X0,5 LAPP Highly flexible control cable with PVC core insulation and PVC shea..

Benefits

• Well-proven and reliable
• For various applications
• Good combination of quality and price
• Low particle emission at moved chain application

Application range

• In power chains or moving machine parts
• Suitable for use in measuring, control and regulating circuits
• Assembly lines, production lines, in all kinds of machines
• In damp or wet interiors
• Only for outdoor use within the indicated operating temperature range, with UV-protection

Product features

• Flame-retardant according IEC 60332-1-2
• Low-adhesive surface

Norm references / Approvals

• Core and outer sheath based on VDE 0245/0285
• For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

• Extra-fine wire strand made of bare copper wires (class 6)
• Core insulation: PVC
• Cores twisted in layers in short lay lengths
• Non-woven wrapping
• PVC outer sheath, grey (similar RAL 7001)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• Black with white numbers acc. to VDE 0293-334

Conductor stranding

• Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6

Minimum bending radius

• Flexing: up from 7.5 x outer diameter
• Fixed installation: 4 x outer diameter

Nominal voltage

• U0/U: 300/500 V

Test voltage

• 4000 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• Flexing: 0°C to +70°C
• Fixed installation: -40°C to +80°C

Bending cycles & operation parameters

• See Selection Table A2-1 in the appendix of our online catalogue
