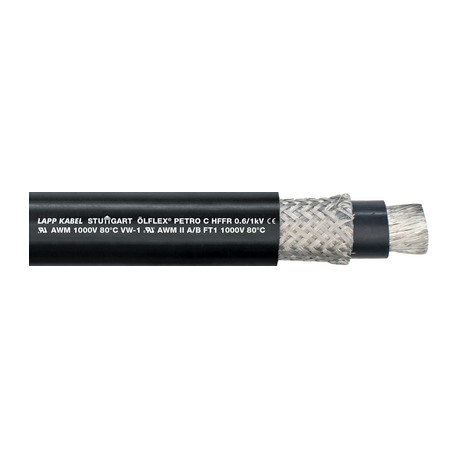

0023249 ÖLFLEX PETRO C HFFR 1X70 BK LAPP ÖLFLEX PETRO C HFFR 1X70 BK

Benefits

• Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
• Reduced flame spreading increases the protection against damage to persons and property in the event of a fire
• Wide temperature range for applications in harsh climatic environments
• Copper braiding screens the cable against
  electromagnetic interference
• Can be used in many applications from different industries due to its mechanical, thermal and chemical properties

Application range

• Onshore and offshore applications
• For electrical connection of drilling units, pumping stations, compressors or generators in harsh environmental conditions
• Particularly in wet areas of machine tools and transfer lines
• Chemical and petrochemical industry
• For indoor and outdoor use

Product features

• Resistant to oil and drilling fluids according to NEK TS 606:2016 and IEC 61892-4
• Fire behaviour:
  - Halogen-free according to VDE 0472-815
  - Flame-retardant according to IEC 60332-1-2
  - No flame propagation according to
  IEC 60332-3-22 cat. A
• UV-resistant according to ISO 4892-2
• Ozone-resistant according to EN 50396
• Salt water-resistant according to UL 1309

Norm references / Approvals

• Single-core versions:
  USA: UL AWM Style 11624
  Canada: cUL AWM II A/B
• Multi-core versions:
  USA: UL AWM Style 20234
  Canada: cUL AWM II A/B

Product Make-up

• Fine-wire, tinned-copper conductor
• Core insulation: polyolefin compound
• Cores twisted in layers
• Inner sheath: halogen-free compound
• Tinned copper screen braiding
• Outer sheath made of robust special polymer, colour black

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• Colours according to VDE 0293-308, refer to Appendix T9
• From 6 cores: black with white numbers

Fire test

• Flame-retardant acc. to IEC 60332-1-2,
  UL VW-1, Cable Flame Test, CSA FT 1
• No flame-propagation according to IEC 60332-3-22 category A

Conductor stranding

• Fine wire acc. to VDE 0295, class 5 / IEC 60228 class 5 from 0.5 mm²

Minimum bending radius

• Occasional flexing: 20 x outer diameter
• Fixed installation: 6 x outer diameter

Nominal voltage

• IEC U0/U: 600/1000 V
• UL/CSA: 1000 V

Test voltage

• 4000 V

Temperature range

• Occasional flexing: -40°C to +90°C
  (UL/CSA: +80°C)
• Fixed installation: -50°C to +90°C
  (UL/CSA: +80°C)
