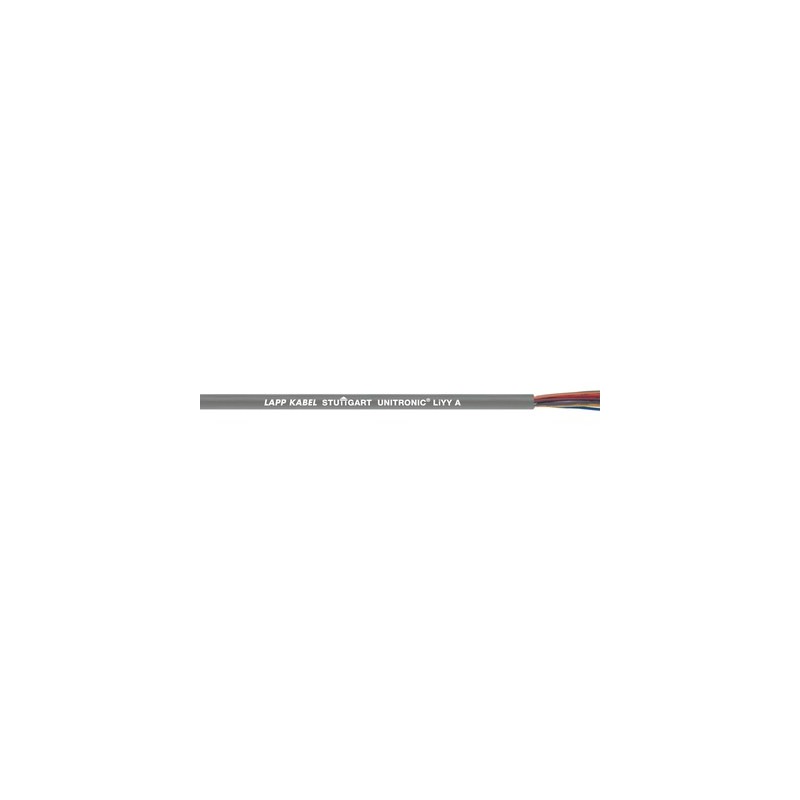

0022412 UNITRONIC LiYY A 12XAWG26/7 LAPP UNITRONIC LiYY A 12XAWG26/7
0022412
UNITRONIC LiYY A 12XAWG26/7
LAPP
UNITRONIC LiYY A 12XAWG26/7
UNITRONIC® LiYY A
Cables > Data and communication cable
flexible data cable transfer from special cable
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲UNITRONIC® LiYY A: Low-frequency PVC data cable, DIN 47100 color coded, UL CSA AWM, Flexible (0.34² Maxi TERMI-POINT®), Flame retardant, Instrumentation Control
- A for Advanced
here: UL and CSA certifications - Further dimensions/colours on request
Benefits
- For various applications
Application range
- Wiring of devices, machines and plants intended for export to the North American market or countries where UL-/CSA
certified cables are used. - For the North American market
Product features
- Flame-retardant acc. to IEC 60332-1-2,UL VW-1 & CSA FT 1
Norm references / Approvals
- UL AWM Style 2464
- CSA AWM I/II A
- UL File No. E63634
Product Make-up
- Multi-wire strand made of tinned copper wires
- Core insulation made of PVC
- Outer sheath made of special PVC compound
Outer sheath colour: Dark grey
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control cable
Core identification code
- DIN 47100 without colour repetition, refer to Appendix T9
Conductor stranding
- AWG conductor sizes, 7 or 19 wires
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x Outer diameter
Nominal voltage
- UL/CSA: 300 V
Test voltage
- 1500 V
Temperature range
- Occasional flexing: -5°C up to +70°C (UL: +80 °C)
- Fixed installation (IEC): -40°C bis +80°C
UL: max. +80°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 0022412 UNITRONIC LiYY A 12XAWG26/7 0022412 EN_0022412.pdf | 311 Kbytes |
|
