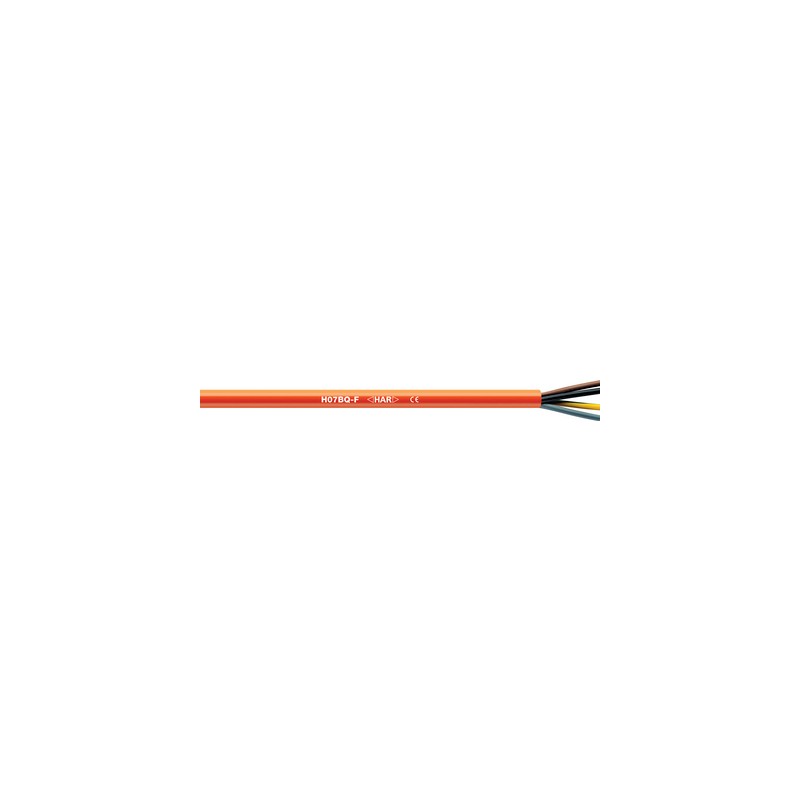

0013630 ÖLFLEX 550 P 2X2,5 LAPP ÖLFLEX 550 P 2X2,5

Benefits

• Harmonised use in Europe
• Increased durability under harsh conditions thanks to robust PUR outer sheath
• Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
• Wide temperature range for applications in harsh climatic environments
• The signal colour of the outer sheath increases safety and visual perception

Application range

• Portable handheld electrical devices such as drills, sanders, jig saws or grinders
• Building sites, camp sites, stage applications
• Construction machinery
• Agricultural equipment
• For indoor and outdoor use

Product features

• Oil-resistant
• Abrasion and notch-resistant
• Flexible down to -40°C
• Resistant to hydrolysis and microbes

Norm references / Approvals

• EN 50525-2-21
• H05BQ-F/H07BQ-F design standard

Product Make-up

• Fine-wire, bare copper conductor
• Core insulation: rubber compound
• Cores twisted together
• PUR outer sheath
• Sheath colour: orange

Classification ETIM 5

• ETIM 5.0 Class-ID: EC001578
• ETIM 5.0 Class-Description: Flexible cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC001578
• ETIM 6.0 Class-Description: Flexible cable

Core identification code

• Colours according to VDE 0293-308, refer to Appendix T9

Conductor stranding

• Fine wire according to VDE 0295,
  class 5/IEC 60228 class 5

Minimum bending radius

• For flexible use:
  12.5 x outer diameter
• Fixed installation: 4 x outer diameter

Nominal voltage

• Up to 1.0 mm²: U0/U: 300/500 V
• From 1.5 mm²: U0/U: 450/750 V

Test voltage

• 3000 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• Occasional flexing: -40°C to +90°C
• Fixed installation: -50°C to +90°C
