0012403 ÖLFLEX EB 4X1,5 LAPP ÖLFLEX EB 4X1,5
0012403
ÖLFLEX EB 4X1,5
LAPP
ÖLFLEX EB 4X1,5
ÖLFLEX® EB
Cables > Power cable less 1 kV, for moving application
Control cables for special applications
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info

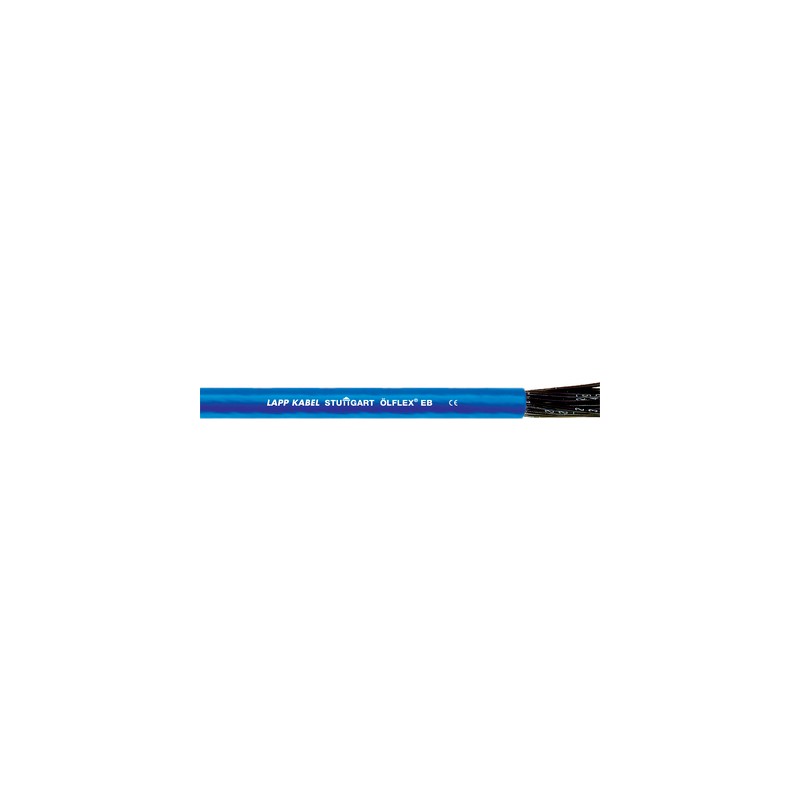

▲ÖLFLEX® EB - PVC control cable, flexible and numbered, with blue outer sheath for intrinsically-safe circuits, U0/U: 300/500V
- CPR: Article number choice under www.lappkabel.com/cpr
- For use within intrinsically safe circuits - type of protection 'i'
- UV and weather-resistant according to ISO 4892-2
Benefits
- Space-saving installation due to small cable diameters
- Suitable for outdoor applications
Application range
- For intrinsically safe circuits (type of protection i - intrinsic safety) according to IEC 60079-14:2013 / EN 60079-14:2014 / VDE 0165-1:2014, section 16.2.2
Product features
- UV and weather-resistant according to ISO 4892-2
- Flame-retardant according IEC 60332-1-2
Norm references / Approvals
- Based on EN 50525-2-51
Product Make-up
- Fine-wire strand made of bare copper wires
- PVC insulation LAPP P8/1
- Cores twisted in layers
- Outer sheath: PVC, sky blue similar to RAL 5015
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-334
Mutual capacitance
- Core/core approx. 140 nF/km
Inductivity
- approx. 0.52 mH/km
Conductor stranding
- Fine wire according to VDE 0295,
class 5/IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- Core/core: 3000 V
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 0012403 ÖLFLEX EB 4X1,5 0012403 EN_0012404.pdf | 193 Kbytes |
|
