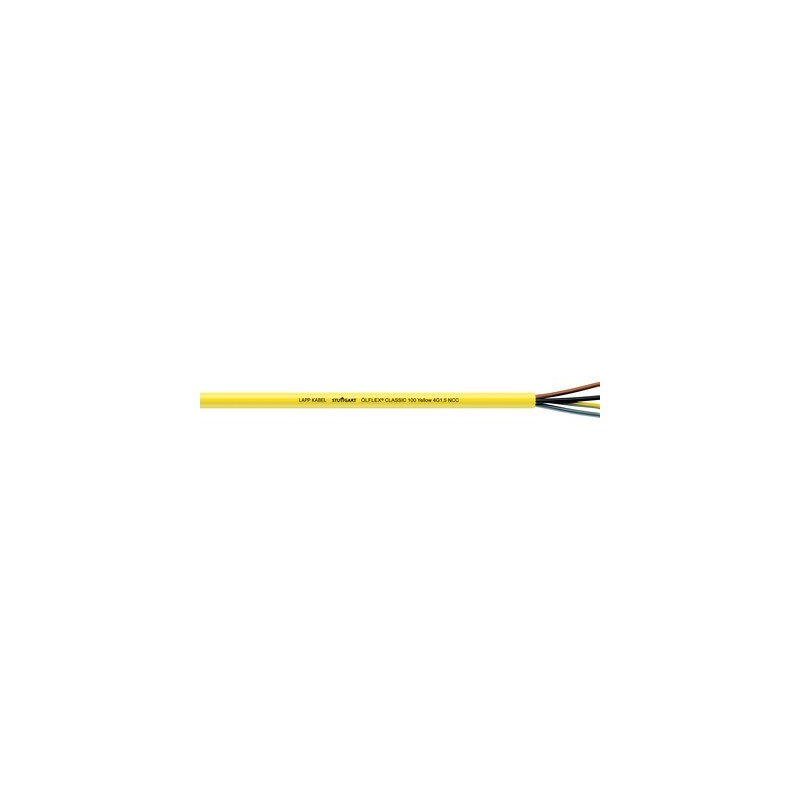

00104033 ÖLFLEX CLASSIC 100 YELLOW 5G1,5 LAPP ÖLFLEX CLASSIC 100 YELLOW 5G1,5

Benefits

• High electrical performance due to 4 kV test voltage

Application range

• For electrical circuits that remain 'live' after the main switch has been disconnected
• Service sockets and illumination circuits
  in electrical switchboards and cabinets
• Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Product features

• Flame-retardant according IEC 60332-1-2
• Good chemical resistance, see catalogue appendix T1

Norm references / Approvals

• Based on IEC 60227-5 and EN 50525-2-51

Product Make-up

• Fine-wire strand made of bare copper wires
• PVC insulation LAPP P8/1
• Outer sheath: PVC, yellow (similar to RAL 1016)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC001578
• ETIM 5.0 Class-Description: Flexible cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC001578
• ETIM 6.0 Class-Description: Flexible cable

Core identification code

• VDE 0293-308, refer to Appendix T9

Conductor stranding

• Fine wire according to VDE 0295,
  class 5/IEC 60228 class 5

Torsion movement in WTG

• TW-0 & TW-1, refer to Appendix T0

Minimum bending radius

• Occasional flexing: 15 x outer diameter
• Fixed installation: 4 x outer diameter

Nominal voltage

• U0/U: 450/750 VAC
  In protected and fixed installations:
  U0/U: 600/1000 V

Test voltage

• 4000 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• Occasional flexing: -5°C to +70°C
• Fixed installation: -40°C to +80°C
