00008747 202010AA+40200121 LAPP 202010AA+40200121 CIRCULAR COMBIN.
00008747
202010AA+40200121
LAPP
5
202010AA+40200121 CIRCULAR COMBIN.
EPIC® SIGNAL R 3.0 A
Connectors > Circular connector for field assembly (industrial connector)
EPIC Round
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info

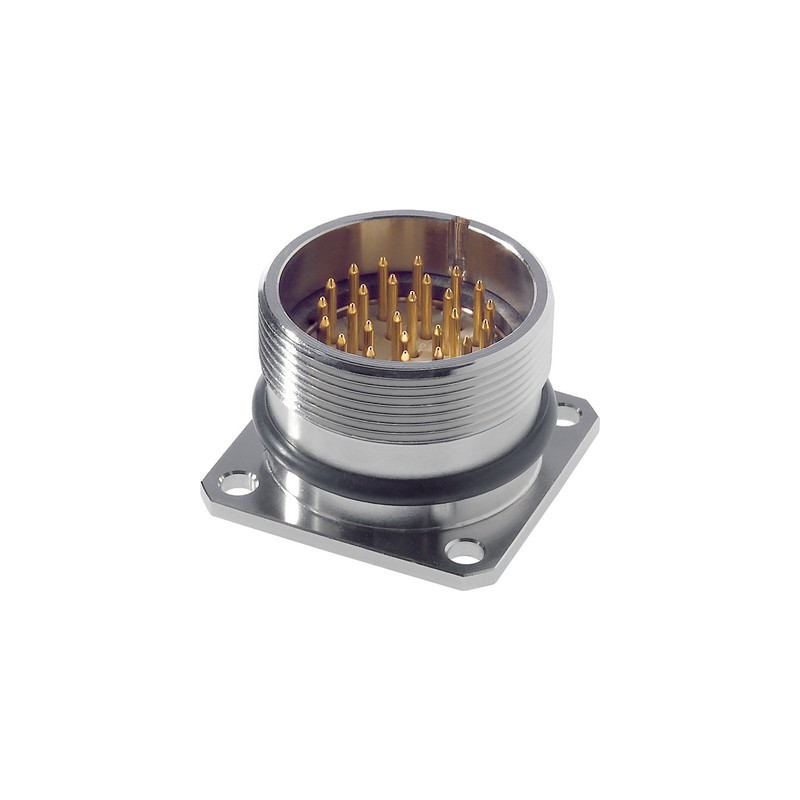

▲EPIC® R3.0 panel base signal for 26 contacts
- Compact and reliable connector for multicore signal cables
- Made in Germany
Benefits
- highest contact density at small space requirements
- Connector in solder version for easy maintanance
Application range
- Machine and equipment manufacturing
- Measurement and control technology
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002635
- ETIM 5.0 Class-Description: Circular connector (industrial connector)
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002635
- ETIM 6.0 Class-Description: Circular connector (industrial connector)
Rated voltage (V)
- 24V AC / 60VDC
Rated impulse voltage
- 1.5 kV
Rated current (A)
- 7.5 A
Contact resistance
- < 3 mOhm
Contacts
- Copper alloy, gold-plated
Number of contacts
- 21-pin / 26-pin
Termination methods
- Solder termination: up to 1.0 mm²
Material
- Housing: nickel-plated copper alloy
Insert: thermoplastic
Sealing: neoprene
Protection rating
- IP 67 (maximum, dependant on cable gland used)
Cycle of mechanical operation
- 500
Temperature range
- -40°C to +100°C, short-term up to +125°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 00008747 202010AA+40200121 00008747 EN_00008867.pdf | 328 Kbytes |
|
