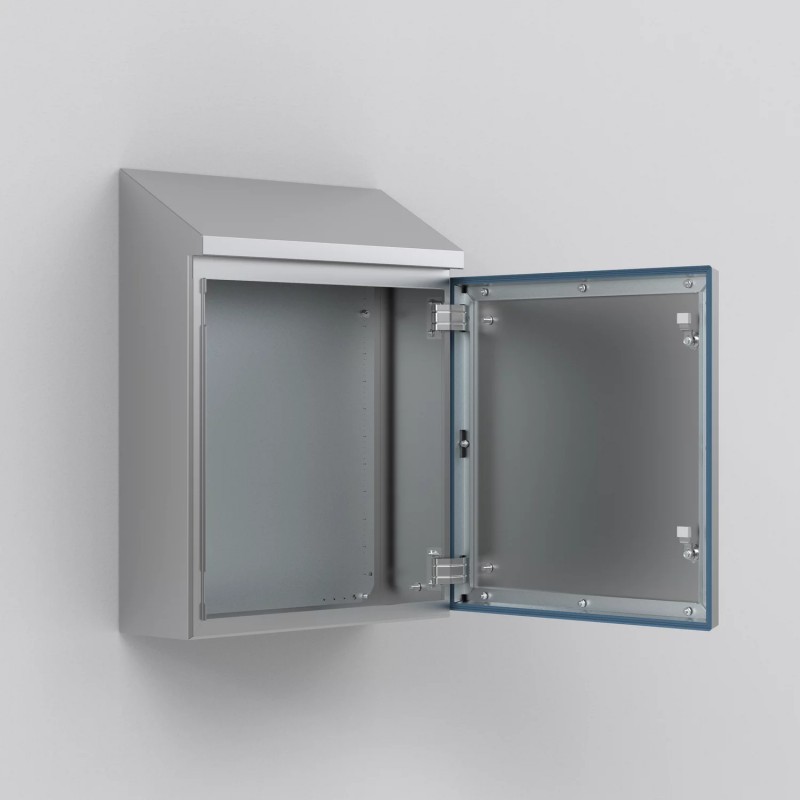

HDW0442215 ELDON Mural HD, 442x220x155, 1 door, with MP, stainless 304, IP66, IP69K
HDW0442215
ELDON
Mural HD, 442x220x155, 1 door, with MP, stainless 304, IP66, IP69K
Wall mounted HD, 442x220x155, 1-door, with MP, stainless 304, IP66, IP69
Cabinet enclosures > Enclosure/switchgear cabinet (empty)
Stainless steel enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Related products
▲Often bought together
▲Best sellers
▲More info
▲Features
- Material: Body: 1.5 mm. Door: 2 mm. AISI 304L pre-grained stainless steel. Mounting plate: 2 mm galvanized steel.
- Body: Monoblock body, folded and seam welded. The top of the body is equipped with a sloping roof at an angle of 30° toward the front, ending with a 30 mm overhang to avoid any draining liquids from dripping onto the gasket and the door.
- Door: Folded with a sloping angle of 8° on all sides. Surface mounted with 120° opening. Concealed zinc plated steel hinges with captive pin. Can be mounted to give left- or right-hand opening (machining is not required).
- Internal hinge: The door hinge is specially designed to be concealed inside the enclosure once the door is closed to avoid dirt from accumulating, making the enclosure easy to clean.
- Gasket: A one piece removable blue silicone gasket with molded corners ensures proper sealing, and makes removing and replacing it faster and easier for cleaning and replacement operations. The silicone is FDA 21 CFR 177.2600 compliant.
- Lock: HD lock made of stainless steel AISI 316L with blue silicone gasket, the lock conforms with norm DIN EN 1672-2:2009.
- Mounting plate: Fixed onto M8 studs welded on the rear of the enclosure. All sides from 800 mm and above are strengthened by folded edges. The mounting plate is marked vertically at 10 mm intervals for easy horizontal positioning of equipment.
- Cable access: No gland openings as standard to avoid hygiene risks.
- Protection: Corresponds with IP 66/69, TYPE 4X, 12, 13, IK08.
- Finish: 400 Pre-grained stainless steel, polished to Ra < 0.8 µm.
- Delivery: Enclosure with door, mounting plate, metallic key and mounting accessories.
- Additional information: For accessories on the outside of the enclosure, please see our HD accessories section.
| Atributo del producto | Valor |
|---|---|
| Height (H) | 442mm |
| Width (W) | 220mm |
| Depth (D) | 155mm |
| Panel Size | 350 x 160mm |
| Material | Stainless Steel 304 |
| Finish | Brushed |
| Thickness (T) | 1.5mm |
| Degree of Slope | 30° |
| UPC | 783510482718 |
| EAN | 8713574227576 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 220.00 mm |
| Height (EF000040) | 442.00 mm |
| Depth (EF000049) | 155.00 mm |
| Material (EF002169) | Stainless steel |
| Material quality (EF001257) | Stainless steel 304 |
| Surface finishing (EF006569) | Untreated |
| Colour (EF000007) | Stainless steel |
| With mounting plate (EF000118) | Yes |
| Mounting plate depth-adjustable (EF006054) | No |
| Pole fastening (EF009582) | No |
| Number of doors (EF000122) | 1.00 |
| Number of locks (EF000123) | 1.00 |
| Pitched roof (EF009278) | Yes |
| EMC-version (EF001062) | No |
| With glazed door (EF001089) | No |
| With ventilation door (EF006279) | No |
| With rear door (EF007381) | No |
| Impact strength (EF004293) | IK08 |
| Degree of protection (IP) (EF005474) | IP69K |
| Degree of protection (NEMA) (EF011959) | 4X |
