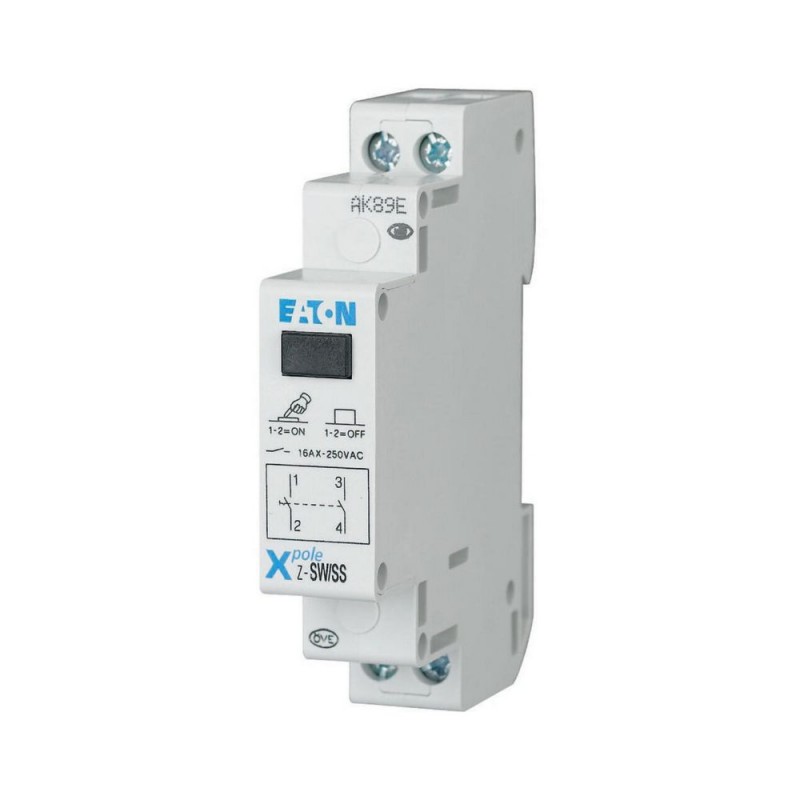

Z-SW/SS 276301 Y7-276301 EATON ELECTRIC 2NO Switch, 16A, 250 V
Z-SW/SS
276301
Y7-276301
EATON-MOELLER
2NO Switch, 16A, 250 V
Z-SW/SS
Eaton Distribution parts. Control switchp12 S16A, 250 V
Switch, function: 2 N/O, rated operational current 16A, rated operating voltage 250V AC, color of pushbutton black, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632
Devices for distribution board-/surface mounting > Main switch for distribution board
Modular Switchgear – Others and Accessories
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product specifications
| Feature Name | Feature Value |
|---|---|
| Switching function (EF000189) | Control switch |
| Number of contacts as normally open contact (EF008256) | 2 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of poles (EF001391) | 2 |
| Rated current (EF000227) | 16 A |
| Rated voltage (EF000228) | 250 V |
| Min. rated voltage (EF005025) | 230 V |
| Rated switching capacity (EF002563) | 0.016 kA |
| Short-circuit breaking capacity (Icw) (EF002562) | 0.02 kA |
| Voltage type (EF000187) | AC |
| With signal lamp (EF000198) | No |
| Colour calotte (EF004668) | Other |
| Lamp type (EF002423) | Other |
| Lamp socket (EF004870) | Other |
| Max. lamp power (EF000260) | 0 W |
| Width in number of modular spacings (EF002950) | 1 |
| Built-in depth (EF000218) | 60 mm |
| Degree of protection (IP) (EF005474) | IP40 |
| Imprint/indication (EF003823) | Other |
| Forced segregation according to DIN VDE 0113 (EFDE0032) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| Z-SW/SS Y7-276301 276301 EN_276301.pdf | 108 Kbytes |
|
