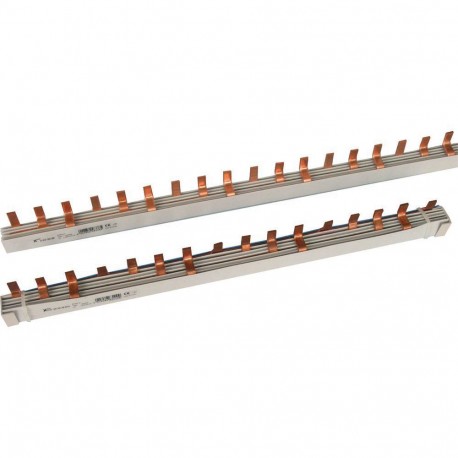

Z-SV-35/3P 264938 Y7-264938 EATON ELECTRIC 3-phase connecting rods
Z-SV-35/3P
264938
Y7-264938
EATON-MOELLER
3-phase connecting rods
Eaton Distribution parts. Block busbar 3Ph., for Z-SLS, PLHT D0.-SO/.., PLHT-V (1, 5space units)
Block busbar 3Ph., for Z-SLS, PLHT D0.-SO/.., PLHT-V (1.5SU)
Low-voltage industrial components > Phase busbar
Modular Switchgear – Others and Accessories
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product specifications
Can be cut to size
| Feature Name | Feature Value |
|---|---|
| Number of phases (EF000351) | 3 |
| Number of poles (EF001391) | 3 |
| Suitable for number of devices (EF007241) | 2 |
| Module width (EF007504) | 0 mm |
| Cross section (EF000649) | 35 mm² |
| Length (EF001438) | 39.3 mm |
| Can be cut to size (EF015250) | Yes |
| Width in number of modular spacings (EF002950) | 12 |
| Rated permanent current Iu (EF001389) | 110 A |
| Type of electric connection (EF003961) | Pin |
| Insulated (EF000019) | Yes |
| Rated surge voltage (EF002993) | 4 kV |
| Conditioned rated short-circuit current Iq (EF001444) | 0 kA |
| Max. rated operation voltage Ue (EF007357) | 480 V |
| Rated short-time withstand current lcw (EF007050) | 0 kA |
| Suitable for devices with N-conductor (EF007218) | No |
| Suitable for devices with auxiliary switch (EF007217) | No |
| Colour (EF000007) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| Z-SV-35/3P Y7-264938 264938 EN_264938.pdf | 107 Kbytes |
|
