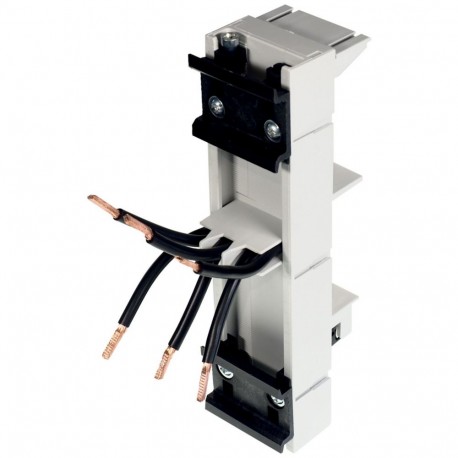

Z-SS-60-ADD/6-72 288792 Y7-288792 EATON ELECTRIC 288792 Z-SS-60-ADD/6-72
Z-SS-60-ADD/6-72
288792
Y7-288792
EATON-MOELLER
288792 Z-SS-60-ADD/6-72
Z-SS-60-ADD/6-72
Eaton xEffect SASY 60i Enclosures Switch- & Controlgear Enclosure. Dual adapter, 6-72
Busbar dual adapter, for 60-mm system, with 2x mounting rail, adjustable, center feeder unit per phase 6mm² cable, Ie=32A, width=72mm, for busbars 12x5/10 to 30x5/10, can be used e.g. for DIN fuse devices
Low-voltage industrial components > Busbar adapter
Circuit Breakers PKZ
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Delivery program
Technical data - electrical
Technical data - mechanical
Additional information
Dual adapter
- Dual adapter (six 6 mm² connection cables), 2 mounting rails
- Mounted by latching onto de-energized busbar
12 x 5/10 mm
15 x 5/10 mm
20 x 5/10 mm
25 x 5/10 mm
Suitable for 5 and 10 mm busbar and double T thickness.
Double T profile
60 mm system
Busbar dual adapters for modular installation devices
| Feature Name | Feature Value |
|---|---|
| Mounting rail armament (EF003700) | 2 mounting rails |
| Type of electric connection (EF003961) | 3 conductors AWG 10 |
| Rated current In (EF008250) | 35 A |
| Min. busbar thickness (EF006536) | 5 mm |
| Max. busbar thickness (EF003702) | 10 mm |
| Width of the adapter (EF003703) | 72 mm |
| Rail width (EF003704) | 30 mm |
| Busbar distance (EF002638) | 60 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON SWITCHING PROTECTING MOTORS EN.pdf | 35 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| Z-SS-60-ADD/6-72 Y7-288792 288792 EN_288792.pdf | 106 Kbytes |
|
