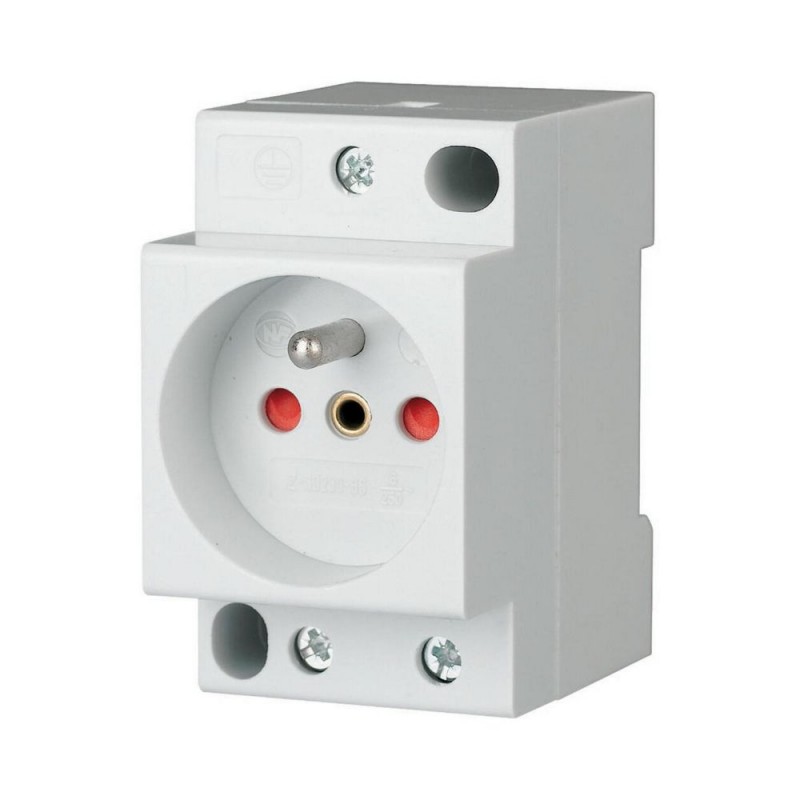

Z-SD230-BS 266876 Y7-266876 EATON ELECTRIC Schuko Plug Base, 10/16A, 250V AC, Type E for FR, BE, SK, TN
Z-SD230-BS
266876
Y7-266876
EATON-MOELLER
10
Schuko Plug Base, 10/16A, 250V AC, Type E for FR, BE, SK, TN
Z-SD230-BS
Eaton Distribution parts. Schuko socket, 10/16A, 250V AC, with integrated increased protection against accidental contact
Schuko socket, type according to VDE, ÖVE, can be connected modularly phase/neutral conductor with busbar, screw fixing possible, width 2.5MU, busbar connector Z-SV-10/1P+N-SD 10 mm2, type -BS with integrated increased protection against accidental contact and earthing pin
Devices for distribution board-/surface mounting > Socket outlet for distribution board
Modular Switchgear – Others and Accessories
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product specifications
| Feature Name | Feature Value |
|---|---|
| Rated voltage (EF000228) | 250 V |
| Rated current (EF000227) | 16 A |
| With hinged lid (EF000117) | No |
| Voltage type (EF000187) | AC |
| With enhanced contact protection (EF000389) | Yes |
| With control lamp (EF005055) | No |
| Width in number of modular spacings (EF002950) | 2.5 |
| Built-in depth (EF000218) | 60 mm |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of socket outlets (EF000336) | 1 |
| Number of active contacts (round) (EF011998) | 2 |
| Number of active contacts (flat) (EF011999) | 0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| Z-SD230-BS Y7-266876 266876 EN_266876.pdf | 105 Kbytes |
|
