XVTL-MP/BX-85/6/20-EP 158100 Y7-158100 EATON ELECTRIC Additional distribution box IP55-EP View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

XVTL-MP/BX-85/6/20-EP 158100 Y7-158100 EATON ELECTRIC Additional distribution box IP55-EP

XVTL-MP/BX-85/6/20-EP

158100

Y7-158100

EATON-MOELLER

Additional distribution box IP55-EP

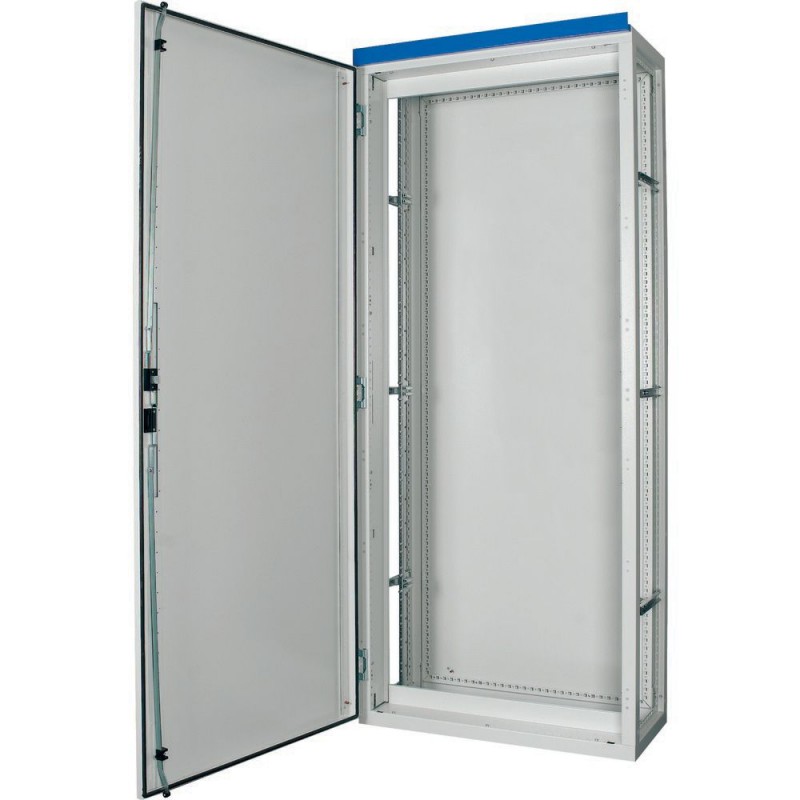

Eaton xEffect xVtl Enclosures Switch- & Controlgear Enclosure. Distribution cabinet, EP, HxWxD=2000x850x600mm, IP55

Fragment basic equipment for XVTL-MP/BF...-EP (IP55), consisting of frame; back plate; door (with slim door); top cover (prepared for F3A gland plate insert); mounting system for the EP mounting units; insulating surround. Sheet steel, with powder coating RAL 7035

More details


Cabinet enclosures > Enclosure/switchgear cabinet (empty)

Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $1,592.60
Unit price: $1,592.60
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton xEffect xVtl empty enclosure-EP
Catalog Number
158100
Model Code
XVTL-MP/BX-85/6/20-EP
EAN
4015081546893
Product Length/Depth
600 mm
Product Height
2000 mm
Product Width
850 mm
Product Weight
106 kg
Compliances
RoHS conform

Product specifications

Features
Connectable
Mounting plate depth-adjustable
EMC-version
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Not applicable.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Not applicable.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Met; assembled and secured as per the latest applicable instruction leaflet.
10.2.6 Mechanical impact
IK10
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP55
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
< 0.1 Ω; meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 690 V AC
10.9.3 Impulse withstand voltage
6 kV
10.9.4 Testing of enclosures made of insulating material
Does not apply to metal enclosures.
Fitted with:
Mounting plate
Pollution degree
3
Surface finishing
Powder coating
Degree of protection
IK10
IP55
4X (NEMA)
Heat diss. ambient 35°C delta T:20°C free stand individ. encl. top (IEC 60890)
299 W
Heat diss. ambient 35°C delta T: 20°C free stand middle encl. top (IEC 60890)
275 W
Heat diss. ambient 35°C delta T:20°C free stand starting encl. top (IEC 60890)
291 W
Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890)
292 W
Heat diss. ambient 35°C delta T: 20°C wall mount middle encl. top (IEC 60890)
254 W
Heat diss. ambient 35°C delta T:20°C wall mount starting encl. top (IEC 60890)
271 W
Heat diss. ambient 35°C delta T:35°C free stand individ. encl. top (IEC 60890)
600 W
Heat diss. ambient 35°C delta T: 35°C free stand middle encl. top (IEC 60890)
552 W
Heat diss. ambient 35°C delta T:35°C free stand starting encl. top (IEC 60890)
583 W
Heat diss. ambient 35°C delta T:35°C wall mount individ. encl. top (IEC 60890)
585 W
Heat diss. ambient 35°C delta T: 35°C wall mount middle encl. top (IEC 60890)
510 W
Heat diss. ambient 35°C delta T:35°C wall mount starting encl. top (IEC 60890)
543 W
Material quality
Other
Color
Gray
Permissible load of the mounting plate according to IEC 62208 - max
4000 N
Number of locks
1
RAL-number
7035
Material
Steel
Mounting method
Wall fastening
Overvoltage category
IV
Installation type
Floor standing wall model
Protection class
I
Number of covers/doors
1
Suitable for
Metrical mounting
Permissible load of the enclosure according to IEC 62208 - max
5000 N
Permissible load of the door(s) according to IEC 62208 - max
1000 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
585.181 W
Number of connector holes
0

ETIM for 158100 Cabinets and enclosures (EC000261)
Feature Name Feature Value
Width (EF000008) 850 mm
Height (EF000040) 2000 mm
Depth (EF000049) 600 mm
Material (EF002169) Steel
Material quality (EF001257) Other
Surface finishing (EF006569) Powder coated
Colour (EF000007) Grey
RAL-number (EF000116) 7035
Freestanding (EF020363) No
Floor standing wall model (EF015208) Yes
Suitable for wall mounting (EF000664) Yes
Corner model (EF020814) No
Intermediate mounting (EF022994) No
Couplable (EF001229) Yes
With mounting plate (EF000118) Yes
Mounting plate depth-adjustable (EF006054) Yes
Suitable for wall built-in (EF007536) No
Pole fastening (EF009582) No
With door (EF009169) No
Number of doors (EF000122) 1
With glazed door (EF001089) No
With ventilation door (EF006279) No
With rear door (EF007381) No
Number of locks (EF000123) 1
With cover (EF007965) No
Transparent cover (EF011401) No
Suitable for metrical mounting (EF005823) Yes
Pitched roof (EF009278) No
Pre-stamping (EF001039) No
EMC-version (EF001062) Yes
Impact strength (EF004293) IK10
Degree of protection (IP) (EF005474) IP55
Degree of protection (NEMA) (EF011959) 4X
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986) 585.181 W
Max. permissible load of the enclosure according to IEC 62208 (EF014987) 5000 N
Max. permissible load of the door(s) according to IEC 62208 (EF014988) 1000 N
Max. permissible load of the mounting plate according to IEC 62208 (EF014989) 4000 N

Datasheet - PDF

▲
