> EATON - MOELLER>Enclosures >XTSZFBS-W1350 172516 Y7-172516 ELECTRIC Frame to ground 1350mm
Previous Product Next Product

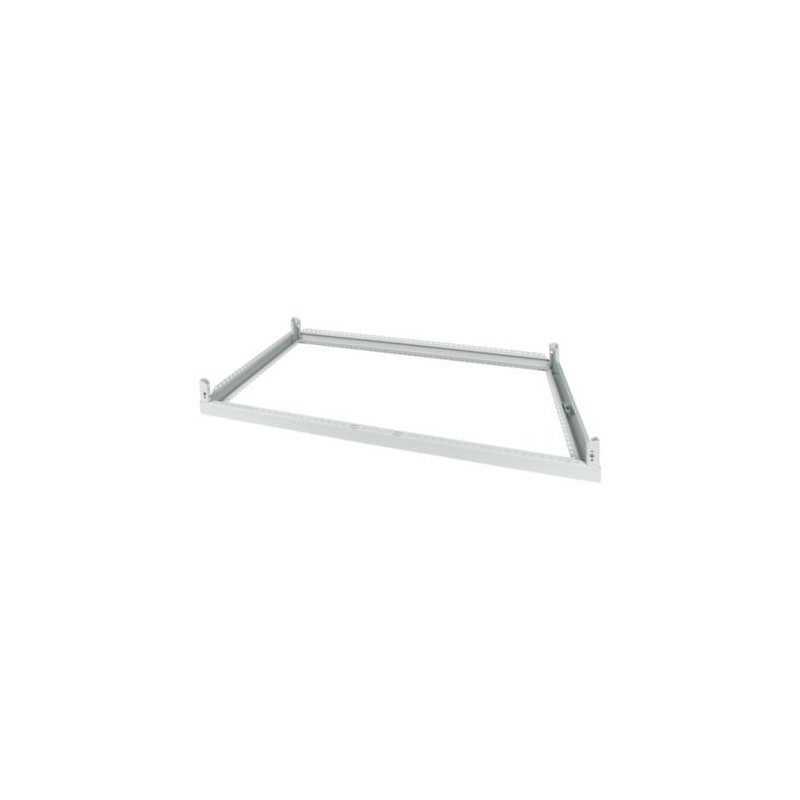

XTSZFBS-W1350 172516 Y7-172516 EATON ELECTRIC Frame to ground 1350mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

XTSZFBS-W1350 172516 Y7-172516 EATON ELECTRIC Frame to ground 1350mm

XTSZFBS-W1350

172516

Y7-172516

EATON-MOELLER

Frame to ground=1350mm

XTSZFBS-W1350

Base frame, floor frame, W=1350mm, grey

More details


Cabinet enclosures > Base/base element (switchgear cabinet)

Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $212.45
Unit price: $212.45
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Base frame, floor frame, W=1350mm, grey

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Enclosure/switchgear cabinet (empty) (EC000261)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Electrical cabinet (empty) / Electrical cabinet ([email protected] [AGZ056016])
Width
1351 mm
Height
120 mm
Depth
776 mm
Material
Steel
Material quality
Other
Surface finishing
Powder coating
Colour
Grey
RAL-number
7035
With mounting plate
No
Mounting plate depth-adjustable
Yes
Number of locks
0
Floor installation possible
No
Wall fastening possible
No
Wall build in
No
Pole fastening
No
Tackable
Yes
Number of doors
0
Suitable for metrical mounting
Yes
Suitable for outdoor set-up
No
Pitched roof
No
EMC-version
No
With glazed door
No
With ventilation door
No
With backside door
No
Impact strength
IK10
Degree of protection (IP)
IP55
Degree of protection (NEMA)

ETIM for 172516 Cabinets and enclosures (EC000721)
Feature Name Feature Value
Model (EF000010) Base stabilization profile
Material (EF002169) Steel
Colour (EF000007) Grey
Max. load capacity (EF000258) 0 kg
Suitable for enclosure building width (EF000326) 1350 mm
Suitable for enclosure building depth (EF000327) 800 mm
Suitable for aeration/de-aeration (EF000324) No
Suitable for cable patch (EF007251) No
Width (EF000008) 1351 mm
Height (EF000040) 120 mm
Depth (EF000049) 776 mm

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
XTSZFBS-W1350 Y7-172516 172516 EN_172516.pdf 153 Kbytes XTSZFBS-W1350 Y7-172516 172516 EN_172516.pdf
